GE CardioSoft PC Based 12 Lead Resting ECG System
Product Code: B100157


- 1 year integration with EMIS, TPP SystmOne and Vision included - Saves time and increases patient safety
- 1 year MediServe Support cover included - Includes unlimited technical support, repair and servicing with loan equipment if required
- 7 metre cable length - Suitable for the largest of consulting rooms
- GE Marquette 12SL ECG Analysis – One of the most validated ECG analysis programs used in the majority of UK hospitals
- Hook Up Advisor – Allows you to resolve quality issues before acquisition
Our diagnostic solutions are designed to save you time and improve patient safety. This product is available with the following options:
I3 Integration
I3 integration will automatically retrieve a patient's details from EMIS, TPP SystmOne or Vision and file a PDF report and associated coded results upon test completion to their medical record.
Find out more about I3 integrationMediserve Support
This product is available with our unique MediServe support package, which includes unlimited technical support and a full aftercare service.
Find out more about Mediserve supportInstallation & Training
Our dedicated team can install and train you on this product at a time that is convenient for you.
Find out more about install & trainingThe GE CardioSoft PC Based 12 Lead Interpretive resting ECG System is a high performance CAM Connect 14 ECG system and CardioSoft PC software package. The CardioSoft system utilises ‘Hook Up Advisor’, which combined with the GE Marquette® 12SL ECG analysis programme, gives the most accurate automated interpretation, helping the clinician to make fast and effective healthcare decisions.
Using the included Intelligent Integration Interface (I3) software*, the Cardiosoft package is fully integrated with all the leading NHS clinical systems from EMIS, TPP and Vision. The software automatically files a high quality ECG report (as a PDF) and a coded result to the patient's record on test completion. CardioSoft is also compatible with the ECG On-Demand with i3 ECG interpretation service from Technomed.

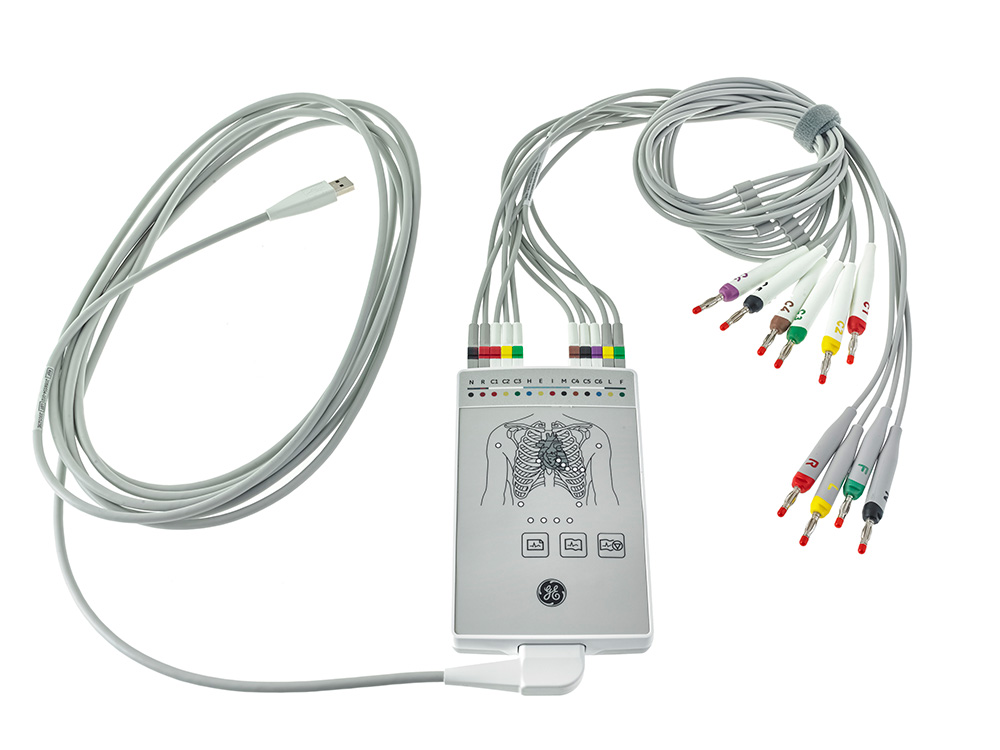

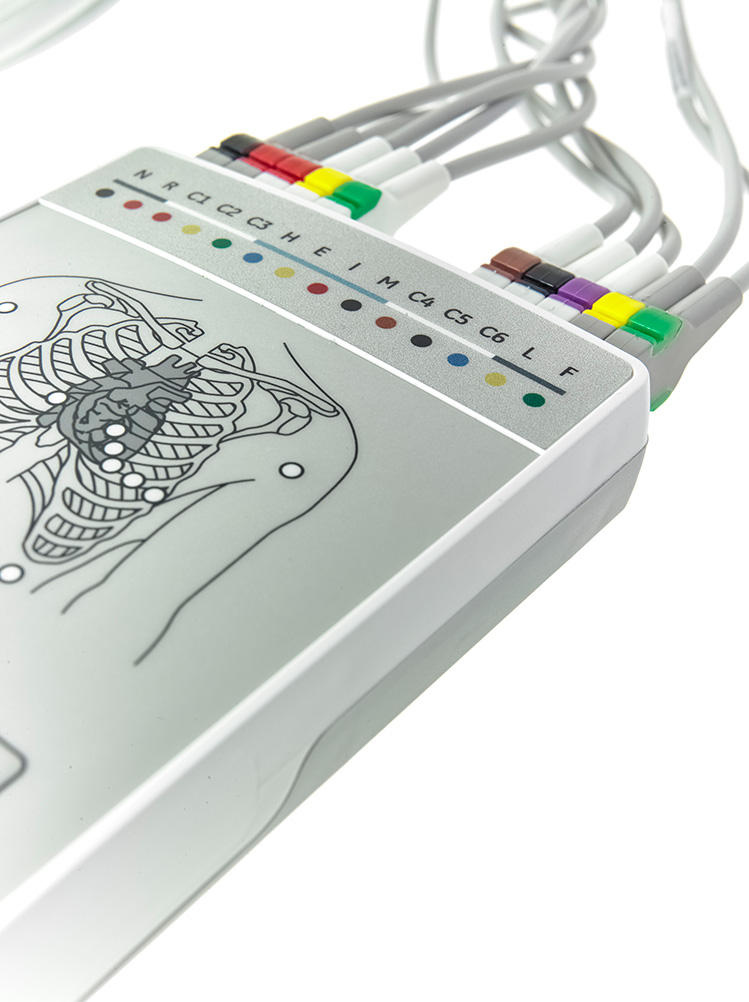

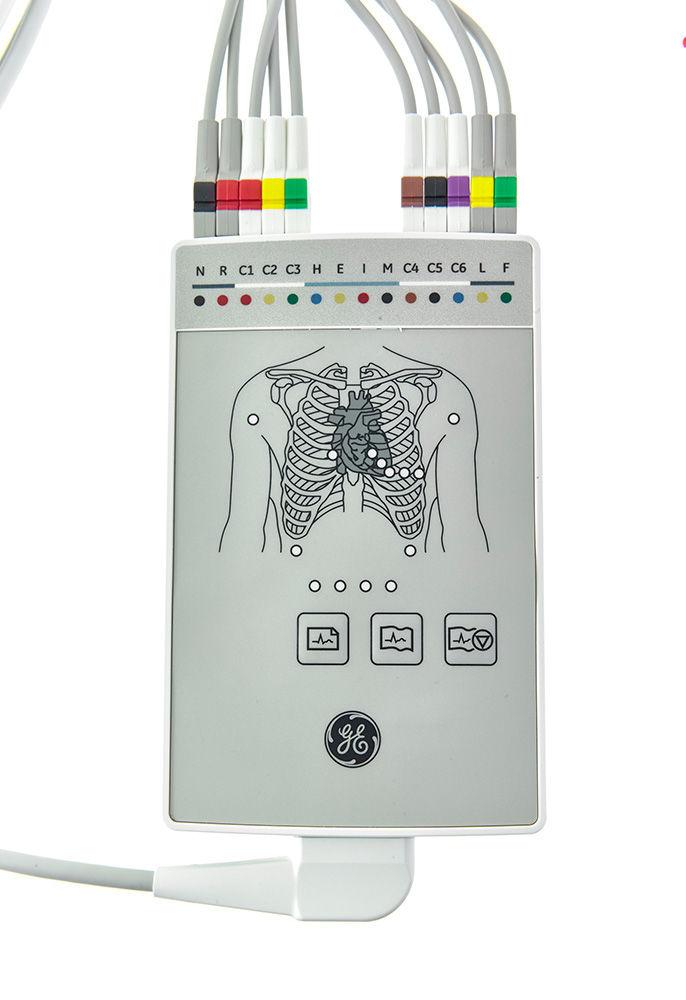

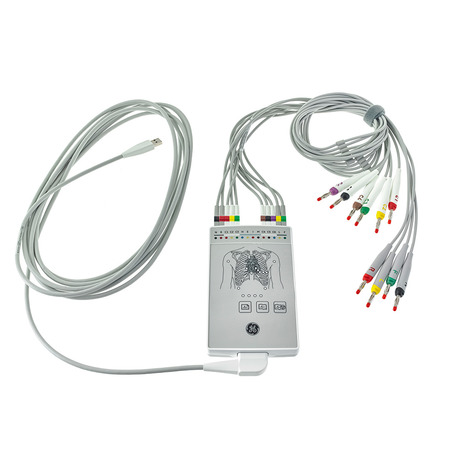

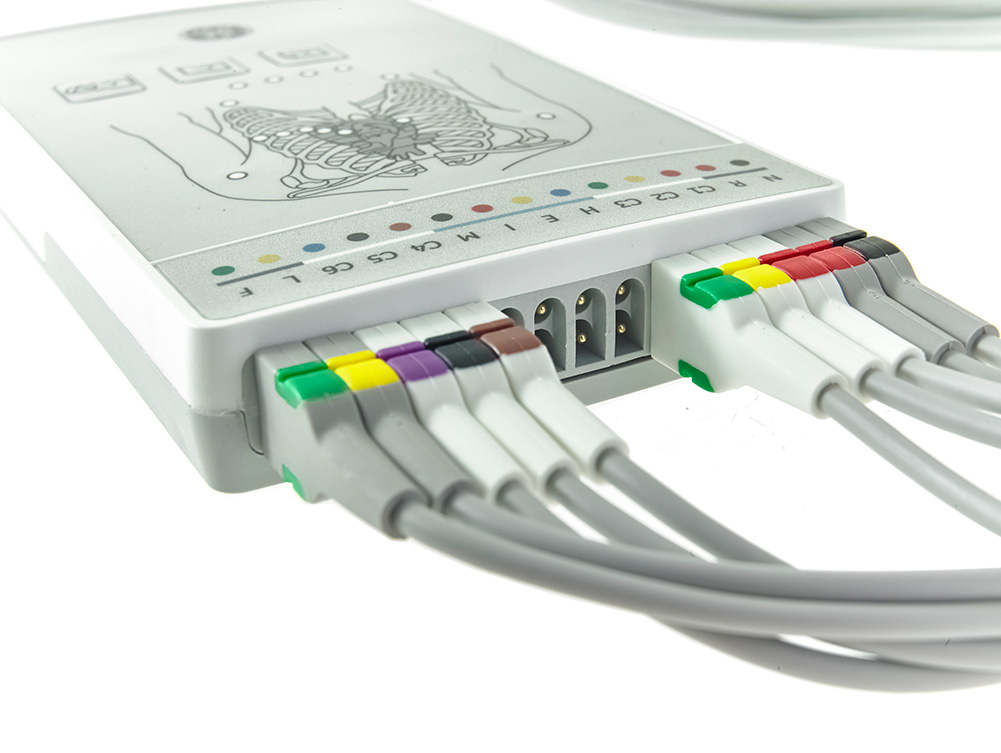

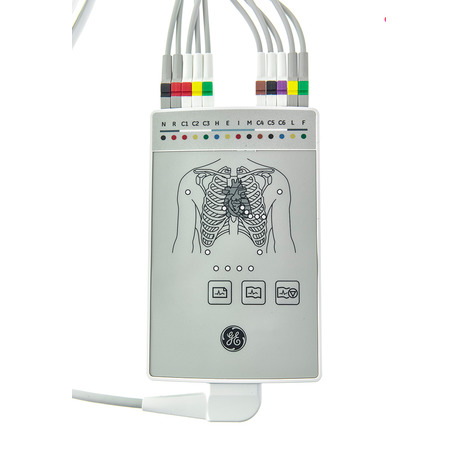

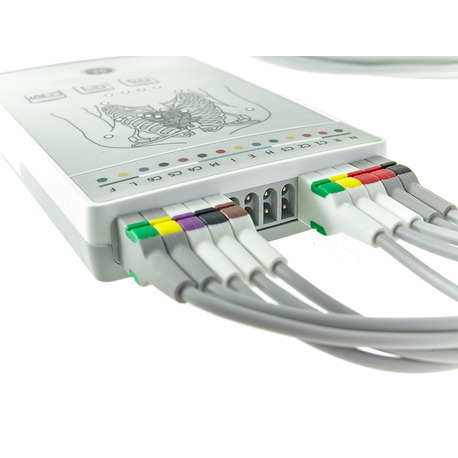

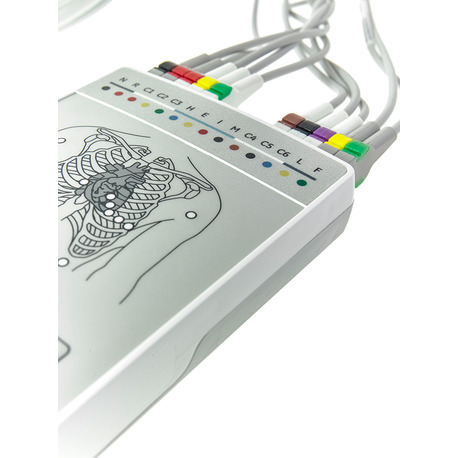

The CAM Connect 14 ECG system connects directly to a USB port of any computer making it perfect for the busy GP practice where multiple rooms are used for ECG testing. For domiciliary visits, CardioSoft can also be installed on a laptop computer.
What’s inside the package?
- CAM Connect 14 12 Lead ECG System
- CardioSoft interpretive PC software
- 100 x Ambu SUPAtab ECG electrodes
- 10 x Crocodile clips
- Protective hard carry case
*ongoing license cost applies
- On site installation and training also available. Please call 0114 243 3896 to discuss the available options.
The manual attachment of diagnostic reports to a patient’s medical record is a time consuming process and, combined with the inputting of codes, can often mean you spend more time carrying out administration tasks than caring for your patients. Manual data entry can also compromise patient safety, through the attachment of test results to the incorrect patient medical record.
I3 integration provides a solution to these problems by acting as a link between your GP clinical system and a range of 12 lead ECG, ABPM and spirometry devices.
I3 will retrieve a patient’s details from the EMIS, TPP SystmOne or Vision clinical systems and automatically pass this information to the diagnostic device you want to use, ready to perform your test. Once all the tests have been completed, I3 will then file a PDF report of the test results and any associated coded results directly into the patient’s medical record automatically. This makes your diagnostic testing safer, faster and easier.

Computer Specifications
Microprocessor - Minimum Pentium® 4 class processor with 2 GHz
RAM - Minimum 2 GB
Hard Drive - Minimum 80 GB and 4 GB of free space if used as a standalone system DVD-ROM drive or USB
Software installation - DVD-ROM drive or USB
Pointer - Mouse
Display resolution - Minimum: 1280 x 768, Maximum: 3840 x 2160
Interfaces - Minimum: 2 USB ports (1.1, 2.0, or 3.0) for each device using this type of interface, CD-RW, SD card, network interface card (recommended), Serial RS232 for each device using this interface type
Operating system - Windows® 10 Enterprise (64 bit) Windows 10 Professional (64 bit), Windows 8.1 Enterprise (64 bit), Window 8.1 Pro (64 bit), Windows 7 Professional (64 bit) with SP1
Printer - Equivalent to HP® P3015dn (Customer Supplied)
Networking LAN - Wired and Wireless: 802.11 G (optional) TCP/IP interface
Citrix® - Citrix XenDesktop/XenApp 7.13 (Desktop Virtualization and/or Application Virtualization) without data acquisition (dedicated network bandwidth required) on Windows 7; Professional (64 Bit), Windows 8.1 Pro (64-bit), Windows 8.1 Enterprise (64 Bit), Windows 10 Pro (64-bit), Windows 10 Enterprise (64 Bit).
Signal processing
Arrhythmia detection - Automatic arrhythmia detection, documentation and annotation
Full disclosure ECG - Up to 60 minutes of Full disclosure with event review both during and post acquisition
Reanalysis - Resting - Re-analyze after manual correction of median beats and measurements
ECG analysis - Marquette 12SL ECG Analysis Program for Adult and Pediatric
Computerized Measurements - 15-lead analysis includes measurements of user-selectable additional 3 leads
Additional ECG function - Vectorcardiography
Heart Rate Meter - 30 to 300 BPM ±10% or 5 BPM, whichever is greater. Heart rates outside this range will not be displayed.
Data acquisition (via CAM CONNECT 14)
Technology - Type CF, Defibrillation-Proof Defibrillation protection:
Per IEC 60601-2-25:2011
Quality Indicators - Real-time Hookup Advisor with LED lead quality indicators
Remote control - ECG acquisition button
Ingress Protection Level - IPx4
High pass filter - 0.04
Communications/Storage
ECG Data Formats - GE Hi-Fidelity ECG, XML
MUSE - MUSE Cardiology Information System Compatible (v7 or later) with bi-directional orders and ADT support
Data export - PDF export of final reports (auto export and custom file name); PDF export of Full Disclosure data; Microsoft® Word export of configured reports; XML or Microsoft Excel® export of specified data
EMR connectivity - Integrated with Centricity Practice Solution (CPS) EMR; Other EMRs through MUSE Cardiology; Information System (v8 or later) or GDT/BDT Interface
DICOM - Bidirectional, DICOM modality worklist/orders
