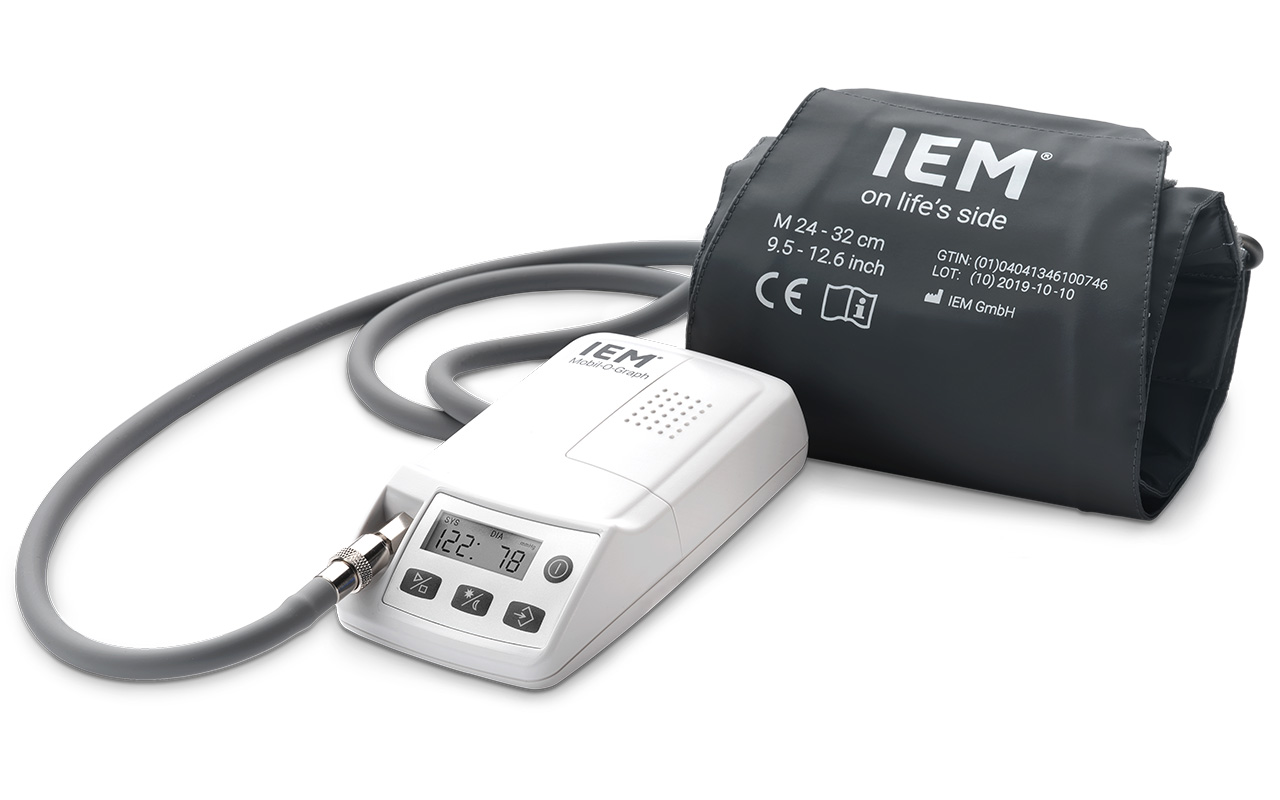

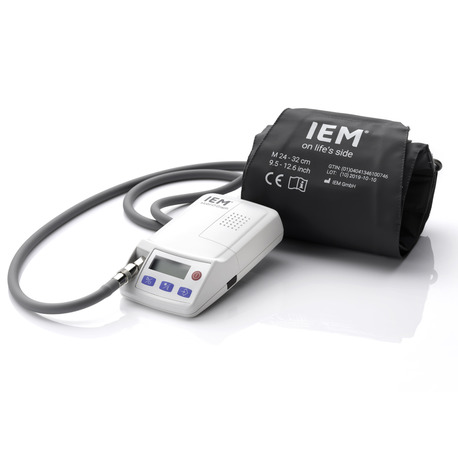

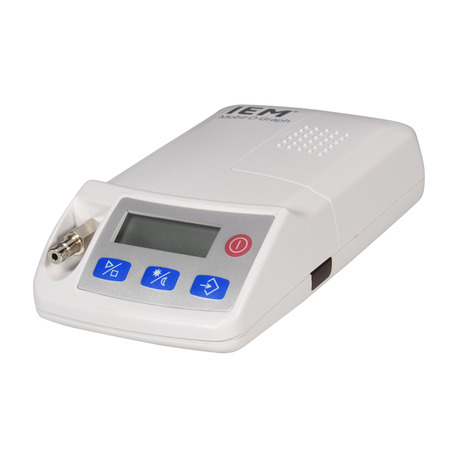

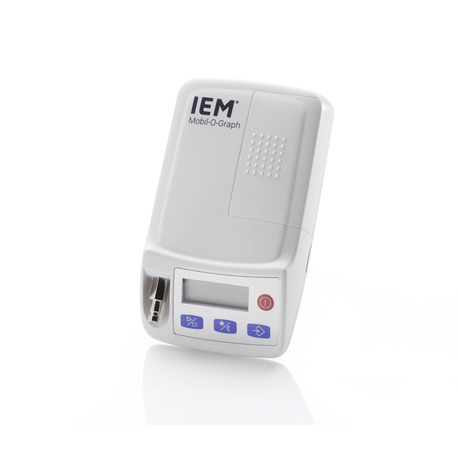

IEM Mobil-O-Graph 24 Hour Pulse Wave Analysis System

Product Code: B100273

Now from
£2,495.00 exc VAT
£2,994.00 inc VAT

  • Pulse Wave Analysis and Central Blood Pressure Measurement - State of the art ambulatory blood pressure monitor with pulse wave analysis and central blood pressure measurement
  • 1 year MediServe Support cover included - Includes unlimited technical support, repair and servicing with loan equipment
  • Includes software and medium & large cuffs
  • 7 year Numed warranty


Support Options

Installation / Training

Related Products

Pro-Larva Antiviral Face Mask
Mobil-O-Graph Cuff (S)
Cotton Disposable Sleeves
Mobil-O-Graph Cuff (XL)

Includes FREE Delivery
£2,495.00 exc VAT
£2,994.00 inc VAT

Our diagnostic solutions are designed to save you time and improve patient safety. This product is available with the following options:

Mediserve Support

This product is available with our unique MediServe support package, which includes unlimited technical support and a full aftercare service.

Find out more about Mediserve support

Installation & Training

Our dedicated team can install and train you on this product at a time that is convenient for you.

Find out more about install & training

The IEM Mobil-O-Graph 24 Hour PWA System is a state of the art oscillometric blood pressure measurement device that has the capability to monitor and analyse the arterial pulse wave. Mobil-O-Graph PWA offers the following PWA protocols:

  • Single Manual Measurement
  • In Clinic Sequential Measurement
  • Ambulatory 24hr Measurement

Traditional methods for assessing central blood pressure, such as radial artery applanation tonography, are expensive and require a highly skilled technician to perform the test.  Mobil-O-Graph PWA simplifies the test so that anyone who knows how to apply a blood pressure cuff can perform it.

IEM Mobil-O-Graph PWA has been successfully validated against international guidelines, and the accuracy of measurement has been compared with internationally recognised invasive and non-invasive gold standards.

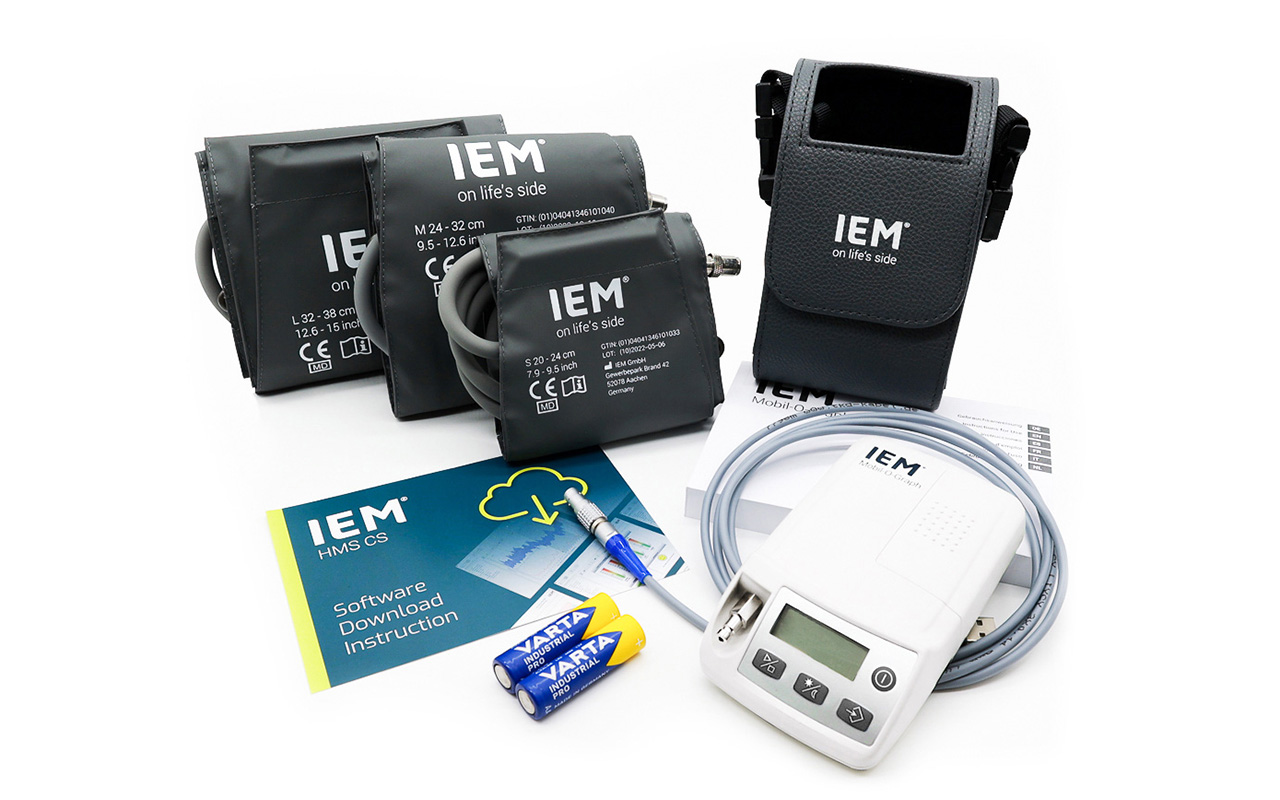

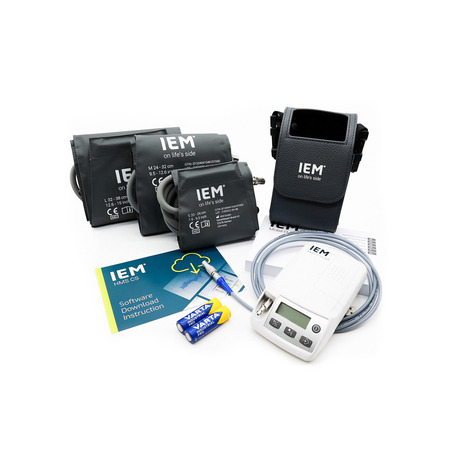

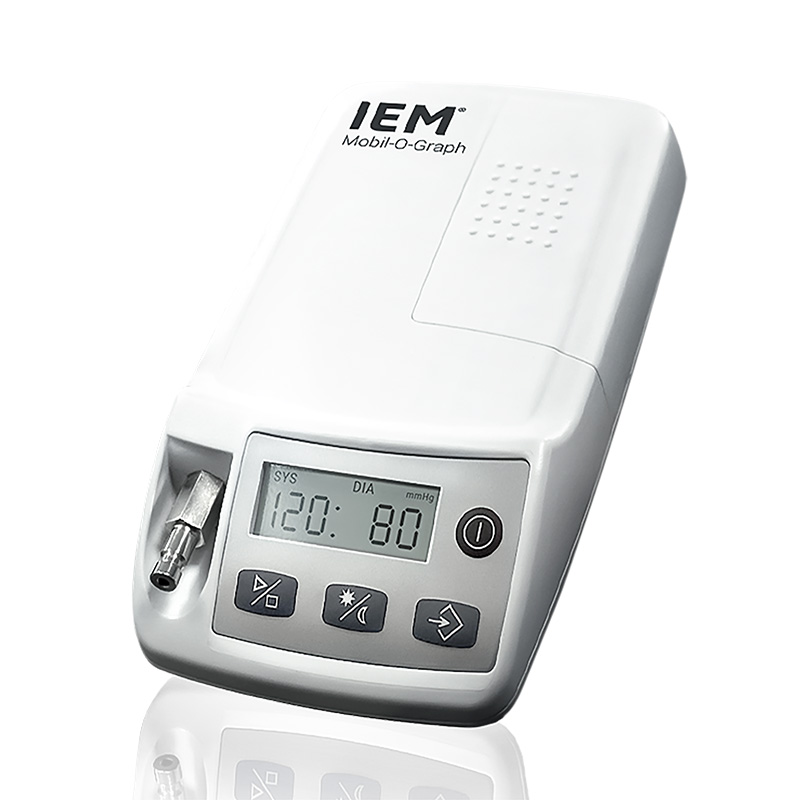

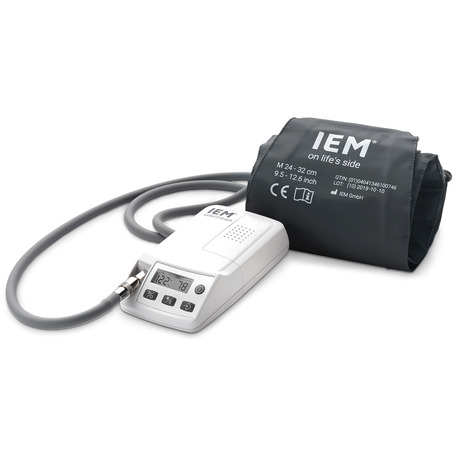

  • Mobil-O-Graph NG ABPM PWA Monitor
  • HMS-Client Server Hypertension Management Software & Bluetooth Dongle
  • USB data cable
  • Belt/shoulder case and strap
  • 1 x medium and 1 x large cuff
  • Battery charger and 4 x rechargeable batteries
  • 5 x cotton sleeves
  • Padded Weave Transit Case
  • Measurement range:-
    • Systolic (SYS):     60 – 290 mmHg
    • Diastolic (DIA):     30 -195 mmHg
  • Accuracy: ± 3 mmHg
  • Pressure range: 0 to 300 mmHg
  • Pulse range: 30 to 240 bpm
  • Measurement method: Oscillometric
  • Measurement protocols: 1,2,4,5,6,10,12,15,20 or 30 measurements per hour
  • Memory: 300 measurements
  • Battery capacity: > 300 measurements
  • Operating temperature: +10 °C till +40 °C
  • Operating air humidity: 15% till 90%
  • Storage condition: −20 °C till +50 °C and 15% till 90% air humidity
  • Dimensions: 128 x 75 x 30 mm
  • Weight: approx. 240 g including batteries
  • Power supply: 2 IEM rechargeable batteries Ni-MH (AA, Mignon) with 1,2 V each and min. 2100 mAh
  • Interfaces:
    • Serial port (cable) compat. for USB Emulation
    • Infrared
    • Bluetooth (Class 1 / 100 m)

IEM HMS-CS PC Requirements

  • Operating System: Windows 7 or Windows 10 (32-bit & 64-bit)
  • Processor: 1 GHz
  • RAM: 1 GB Minimum
  • Hard drive: Recommended 200 MB minimum hard disk storage space
  • Graphics: Minimum 1024x768 resolution
  • USB: One free USB port is required

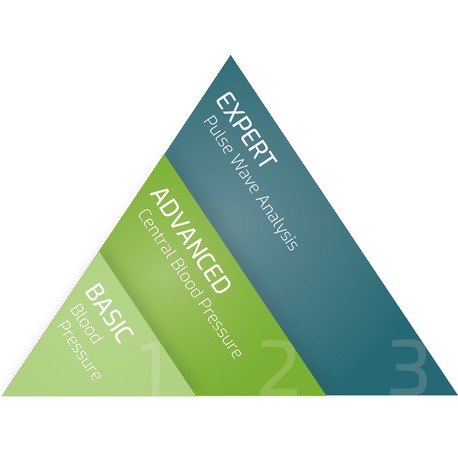

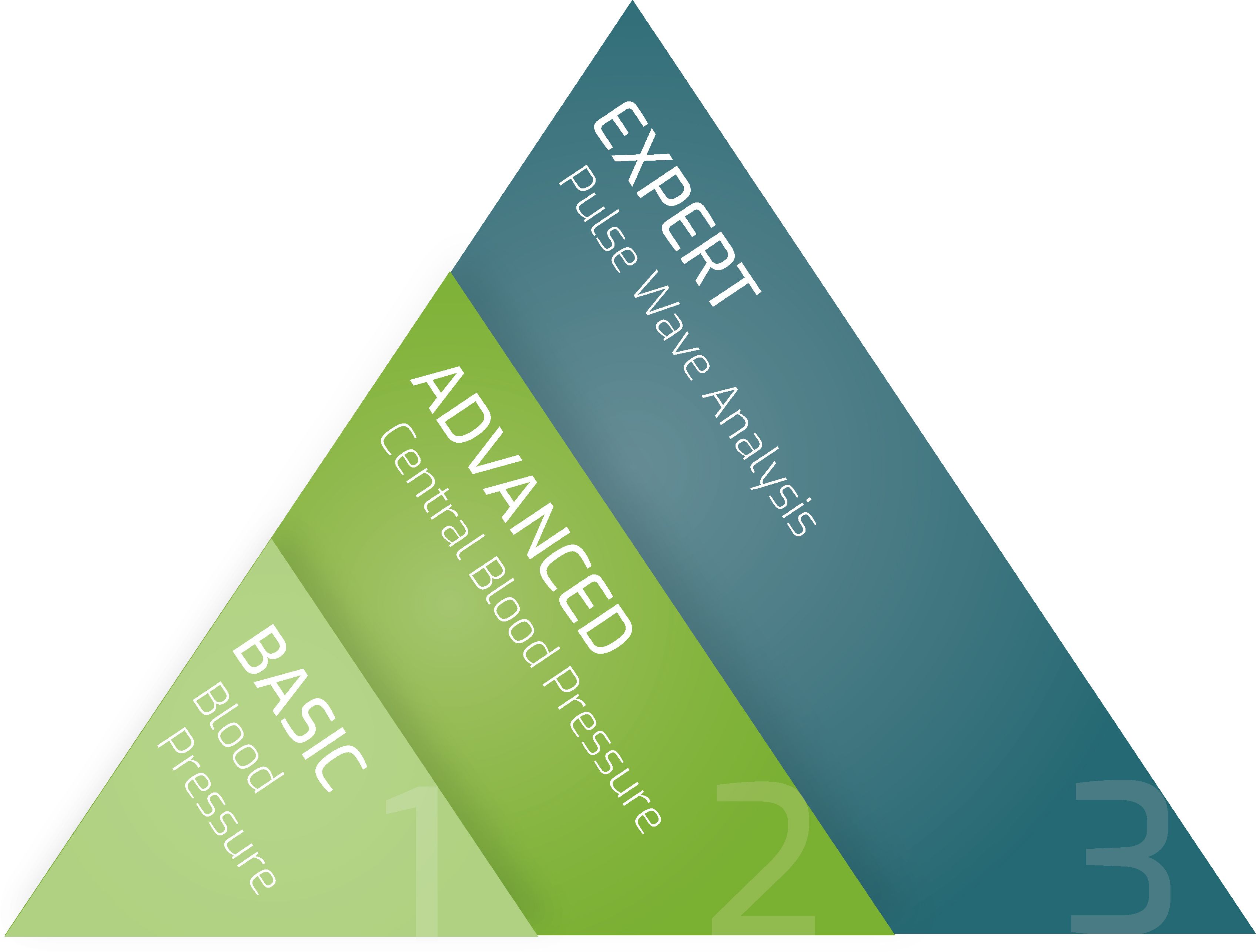

Mobil-O-Graph PWA offers the following Pulse Wave Analysis protocols:

  • Single ManualPWA Measurement
  • In Clinic SequentialPWA Measurement
  • Ambulatory 24hrPWA Measurement


  • Central Blood Pressure
  • Pulse Wave Velocity (PWV)
  • Augmentation @75 Index (AIx@75)
  • Stroke Volume (SV)
  • Cardiac Output (CO)
  • Total Vascular Resistance (TVR)

'I would recommend the Mobilograph PWA. The monitor is easy to use compared with other systems which assess arterial elasticity and takes any operator dependency out of the measurements. The device is competitively priced compared with other systems and the software and reports are easy to use. We have measured arterial elasticity with the Mobilograph PWA system in over 700 individuals across the adult age-span and I am very happy with the way the device has performed.'

Dr Carmel McEneniery - Senior Research Fellow, Clinical Pharmacology Unit - Cambridge University
