IEM Mobil-O-Graph 24 Hour ABPM with Central Blood Pressure Measurement

Product Code: N101281, N101263

Now from
£1,995.00 exc VAT
£2,394.00 inc VAT

  • Central Blood Pressure Measurement - State of the art ambulatory blood pressure monitor with central blood pressure measurement
  • Easily upgradeable - Upgrade to Pulse Wave Analysis module at time of purchase or at a later date - Contact us to find out more
  • 1 year MediServe Support cover included - Includes unlimited technical support, repair and servicing with loan equipment
  • Includes software and small, medium & large cuffs
  • 7 year Numed warranty


Options

Option

Support Options

Installation / Training


Related Products

Cotton Disposable Sleeves
Mobil-O-Graph Cuff (XL)

Includes FREE Delivery
£1,995.00 exc VAT
£2,394.00 inc VAT

Our diagnostic solutions are designed to save you time and improve patient safety. This product is available with the following options:

Mediserve Support

This product is available with our unique MediServe support package, which includes unlimited technical support and a full aftercare service.

Find out more about Mediserve support

Installation & Training

Our dedicated team can install and train you on this product at a time that is convenient for you.

Find out more about install & training

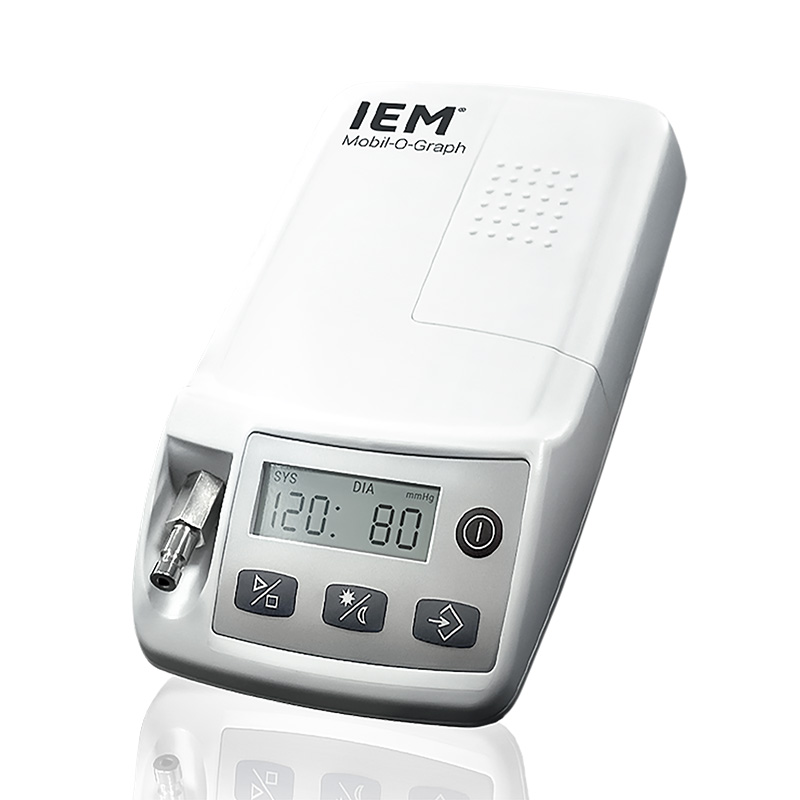

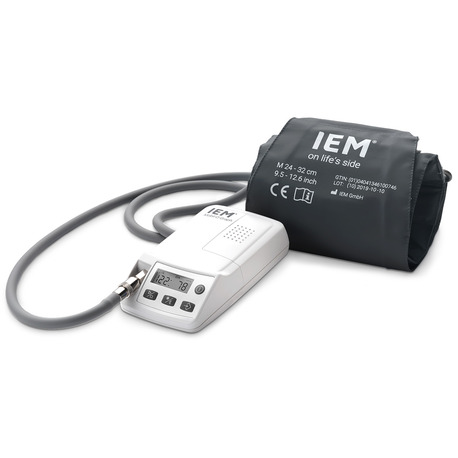

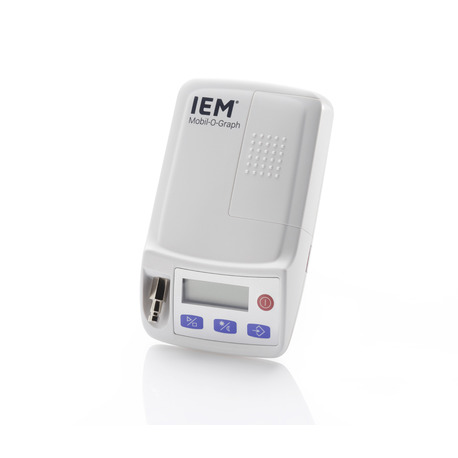

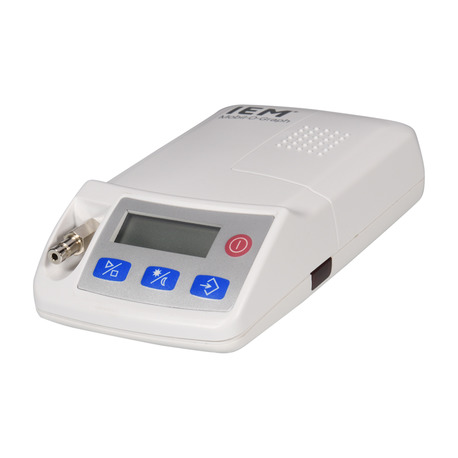

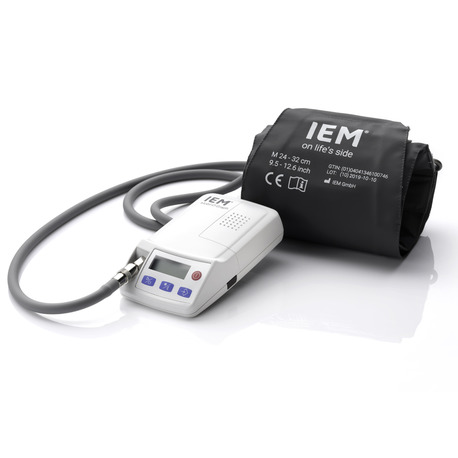

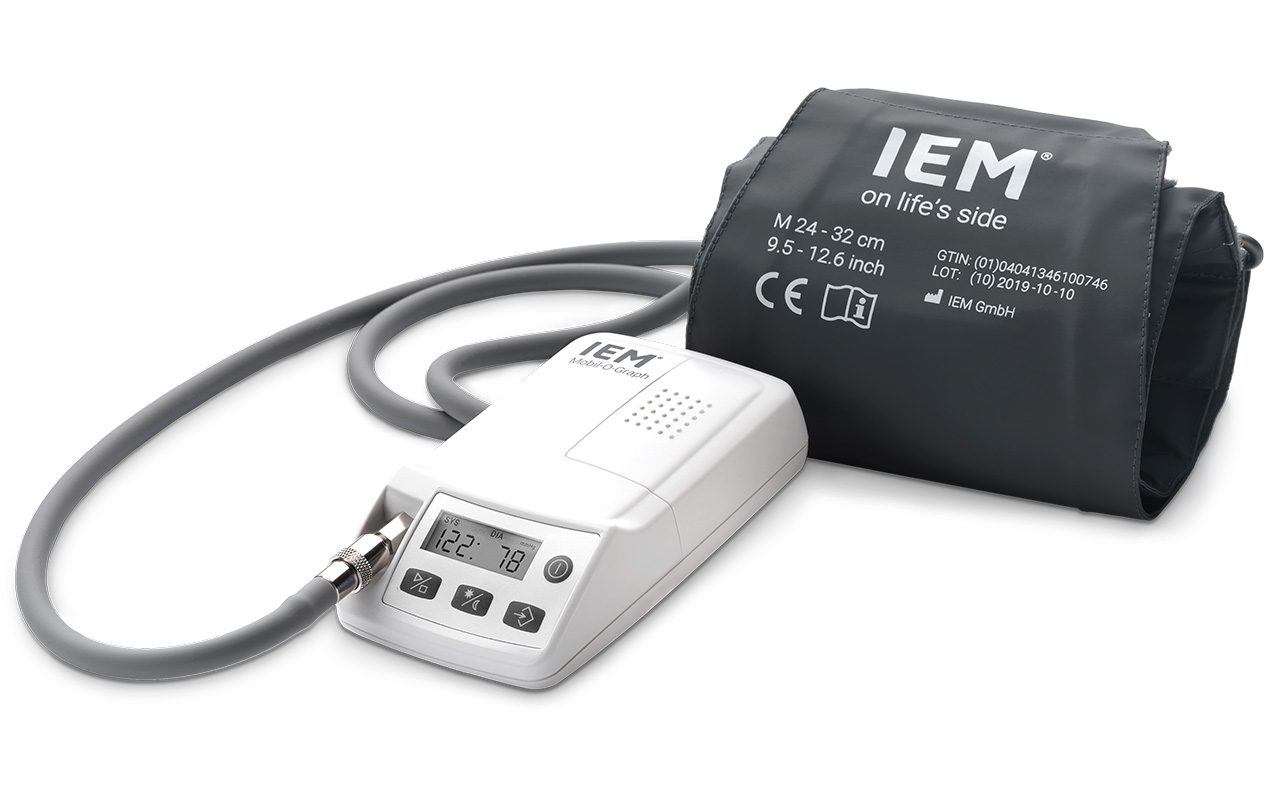

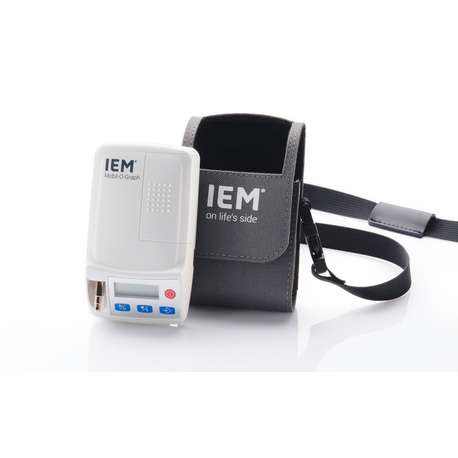

The IEM Mobil-O-Graph is a highly intuitive and fully automatic 24 hour Ambulatory Blood Pressure Monitor with central blood pressure measurement. It has achieved the best possible A/A grade for accuracy from the British Hypertension Society and is ideal for monitoring blood pressure for up to 48 hours. It is supplied with a market leading 7 year warranty.

Central Blood Pressure is the pressure in the ascending aorta, just outside the left ventricle. It is the pressure that the target organs are exposed to and, due to arterial pressure amplification, is lower than brachial cuff pressures. The central blood pressure option included with this Mobil-O-Graph allows accurate measurement of this pressure.

Traditional methods for assessing central blood pressure, such as radial artery applanation tonography, are expensive and require a highly skilled technician to perform the test. Mobil-O-Graph simplifies the test so that anyone who knows how to apply a blood pressure cuff can perform it.

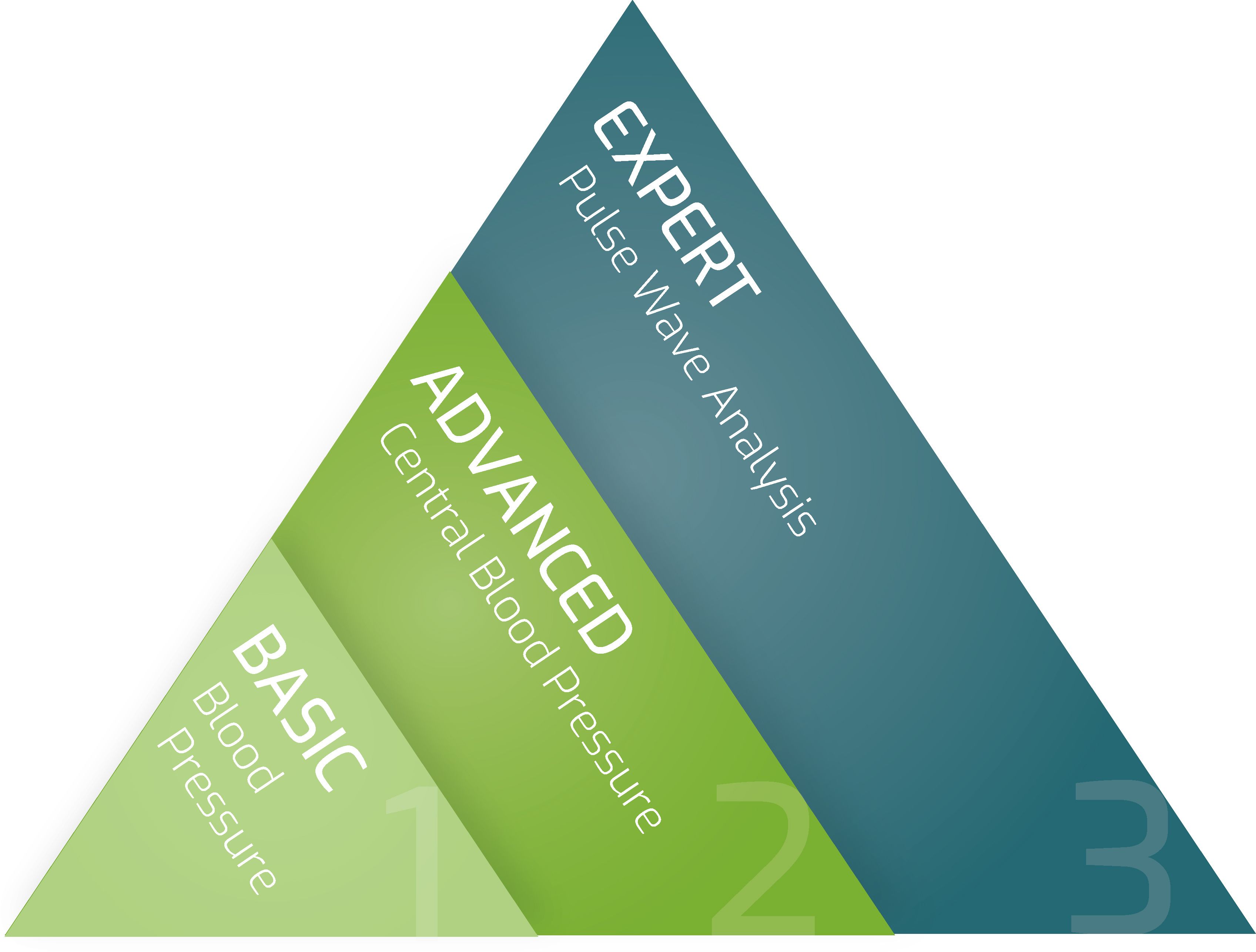

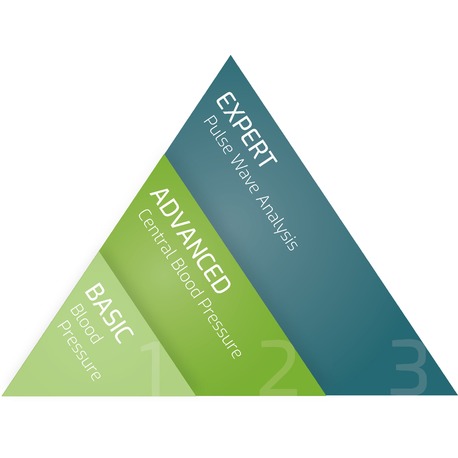

The Mobil-O-Graph is designed to be flexibile, and gives you the option to add additional modules after purchase if required. The monitor can be easily upgraded to include the Pulse Wave Analysis module at any time via a simple software update by the user.*

As recommended by NICE, monitoring a patient’s blood pressure during their everyday routine gives a more accurate blood pressure profile free from distortion created by white coat hypertension. The system is extremely comfortable and quiet and can record ambulatory blood pressure results for up to 48 hours.

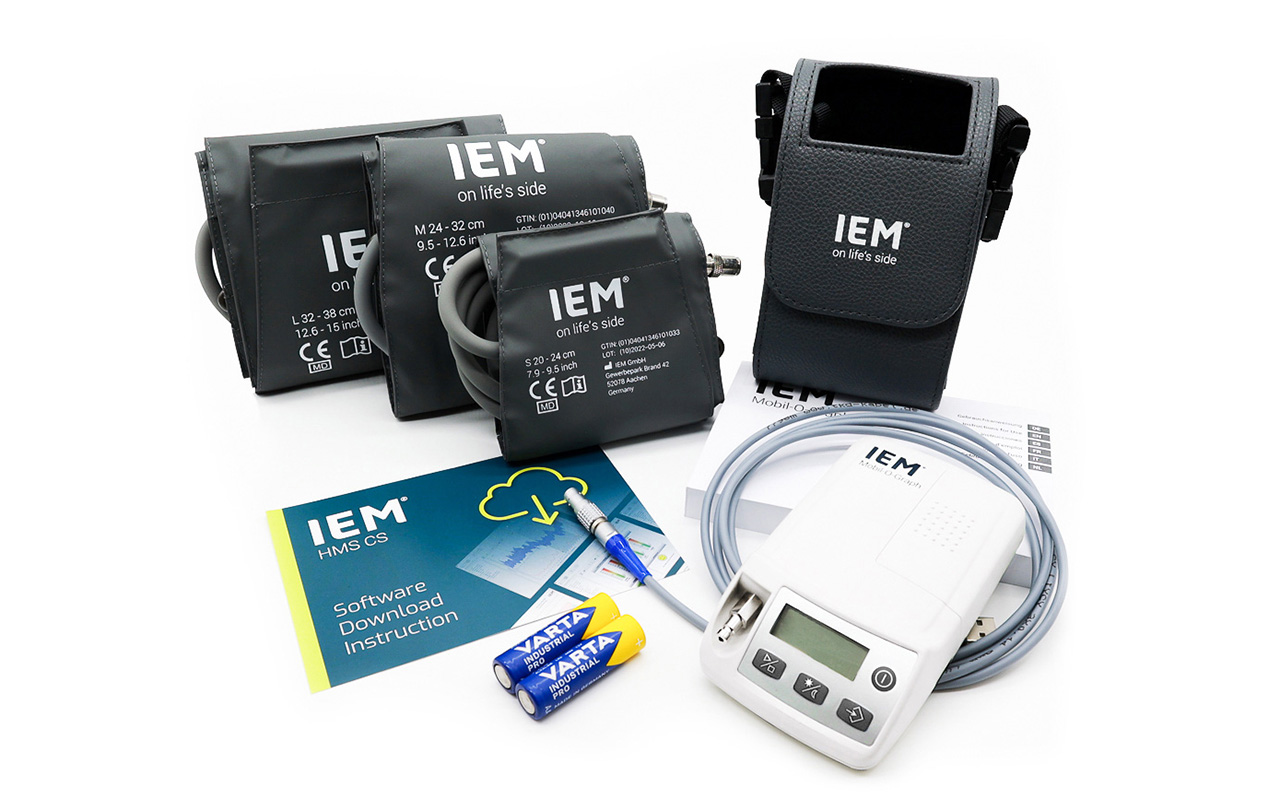

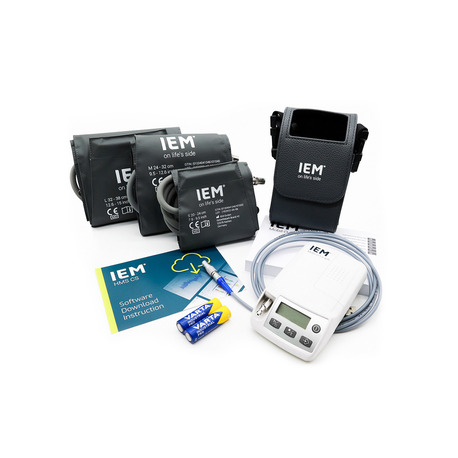

What’s inside the package?

  • IEM Mobil-O-Graph ABPM with Central Blood Pressure module
  • Hypertension Management Software
  • USB data cable
  • Synthetic leather pouch and strap
  • Small, medium and large cuffs
  • Battery charger and 4 x rechargeable batteries
  • 5 x cotton sleeves
  • Padded Weave Transit Case

*Additional cost applies

  • Measurement range:-
    • Systolic (SYS):     60 – 290 mmHg
    • Diastolic (DIA):     30 -195 mmHg
  • Accuracy: ± 3 mmHg
  • Pressure range: 0 to 300 mmHg
  • Pulse range: 30 to 240 bpm
  • Measurement method: Oscillometric
  • Measurement protocols: 0,1,2,4,5,6,12,15,20 or 30 measurements per hour
  • Memory: 300 measurements
  • Battery capacity: > 300 measurements
  • Operating temperature: +10 °C till +40 °C
  • Operating air humidity: 15% till 90%
  • Storage condition: −20 °C till +50 °C and 15% till 90% air humidity
  • Dimensions: 128 x 75 x 30 mm
  • Weight: approx. 240 g including batteries
  • Power supply: 2 IEM rechargeable batteries Ni-MH (AA, Mignon) with 1,2 V each and min. 1500 mAh, or 2 x 1.5 V alkaline batteries (AA, Mignon)
  • Interfaces:
    • Serial port (cable) compat. for USB Emulation
    • Infrared
    • Bluetooth (Class 1 / 100 m)

IEM HMS-CS PC Requirements

  • Operating System: Windows 7 or Windows 10 (32-bit & 64-bit)
  • Processor: 1 GHz
  • RAM: 2 GB Minimum
  • Hard drive: Recommended 500 MB minimum hard disk storage space
  • Graphics: Minimum 1024x768 resolution
  • USB: One free USB port is required
