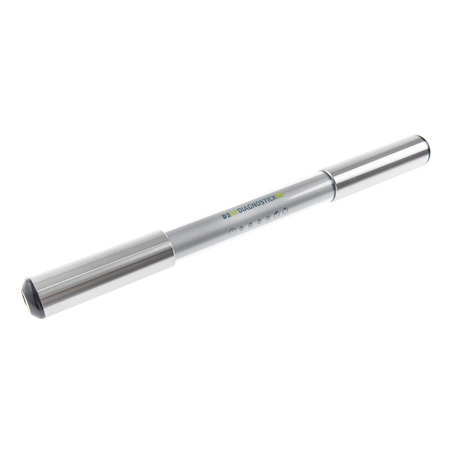

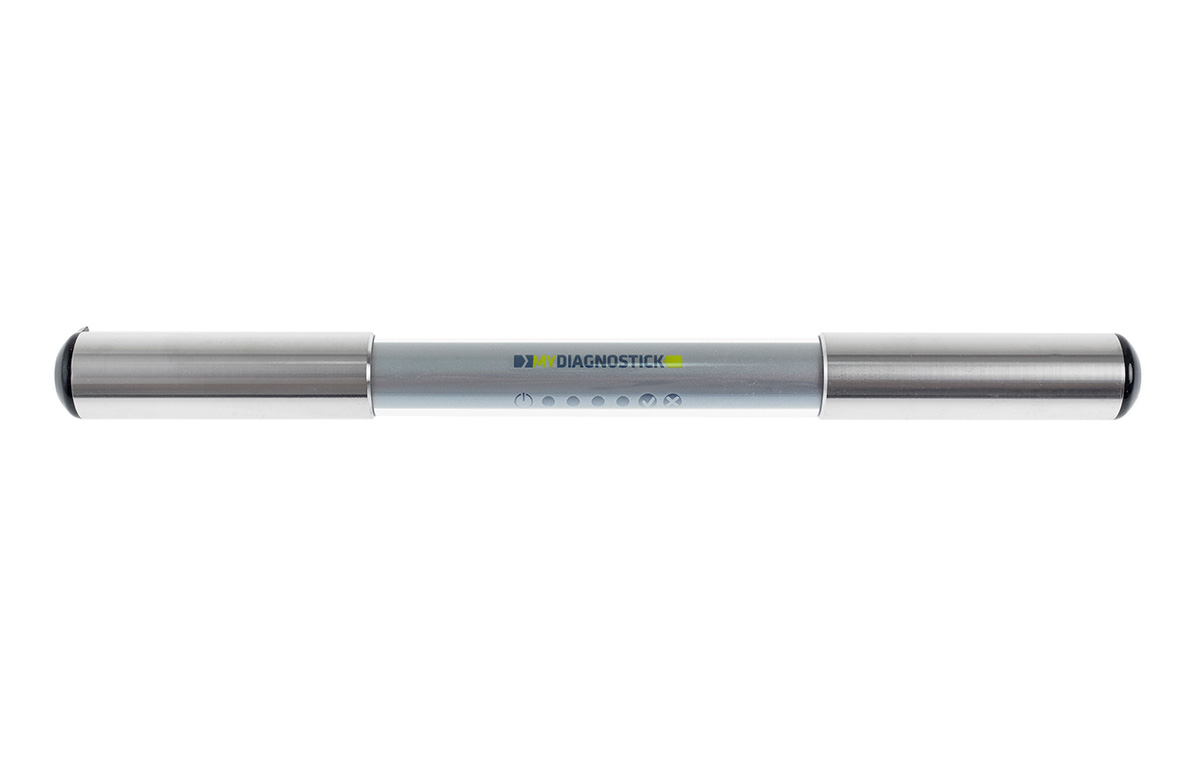

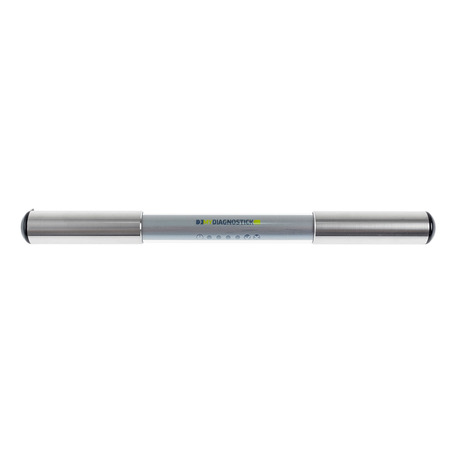

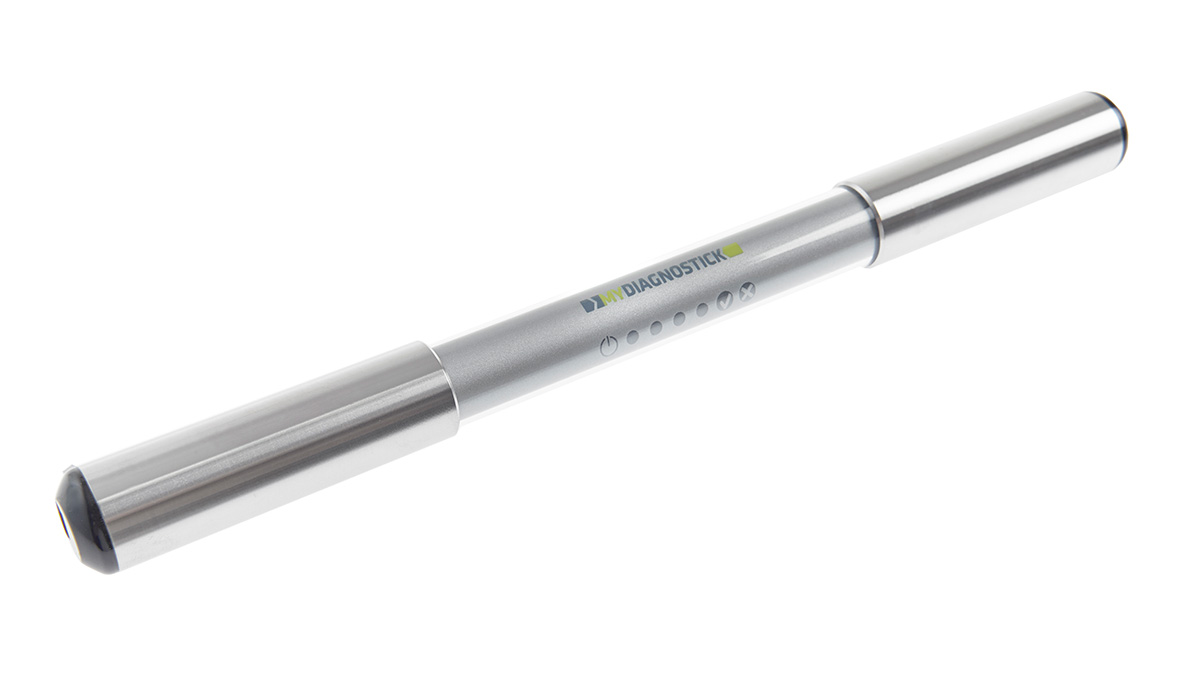

MyDiagnostick AF Screening Device

Product Code: N101282

In Stock

  • Easy to use - metallic handles at both ends record an ECG when gripped
  • High quality Atrial Fibrillation detection - highly sensitive and specific Atrial Fibrillation detection algorithm
  • Highly portable - the device can be used anywhere and at any time to screen for AF

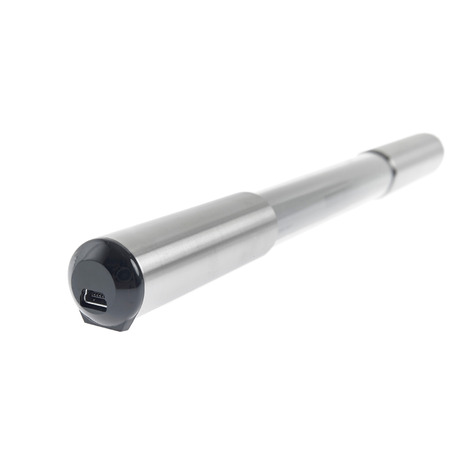

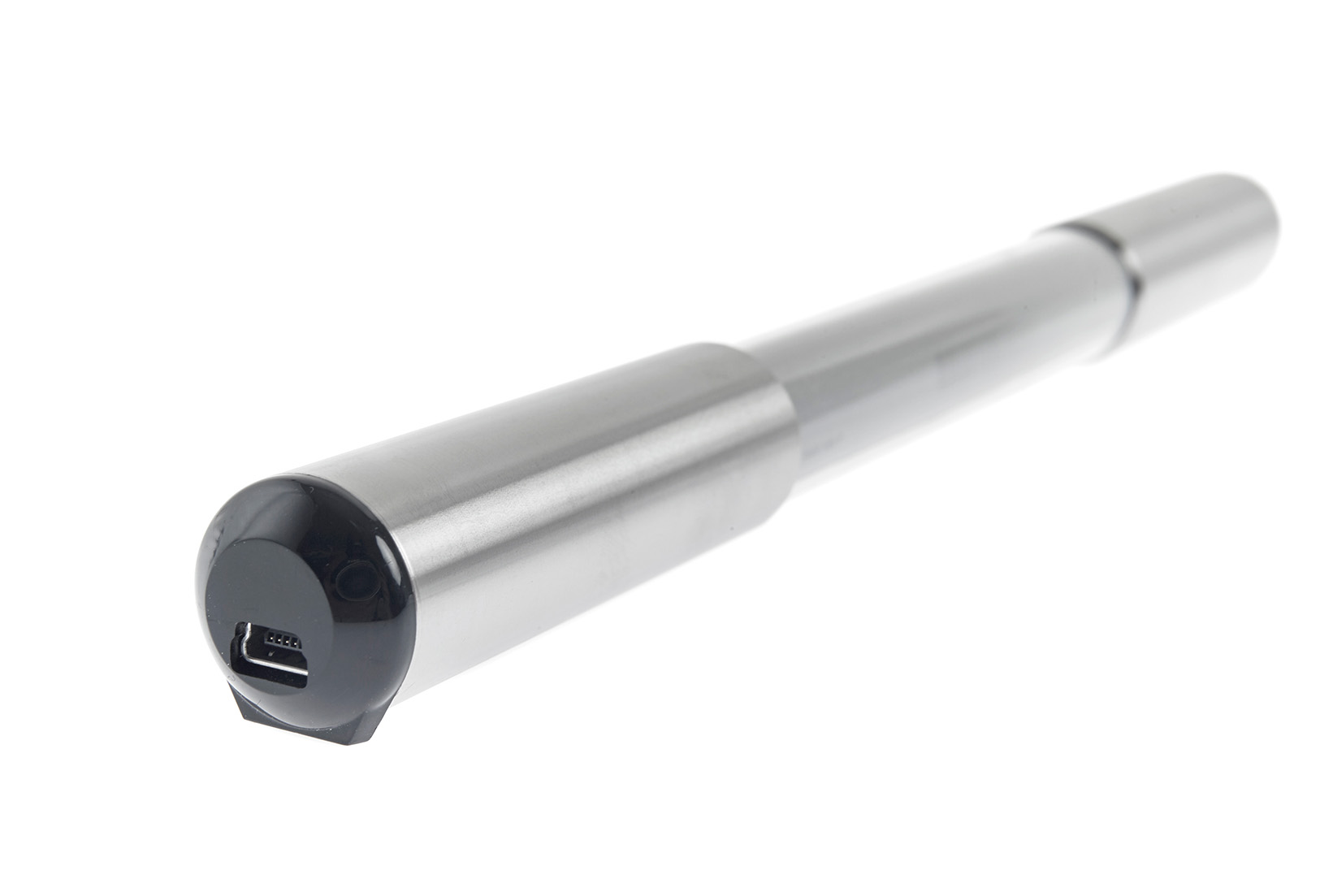

  • Large memory - stores over 100 ECGs with stored ECG strips retrievable via USB connection
  • 2 year warranty

Please contact us for more information about this product.

Be proactive with the monitoring of your patient's cardiovascular health using the MyDiagnostick AF Screening Device. Engineered to detect atrial fibrillation (AF) with precision and reliability, this innovative device offers a non-invasive solution for early detection of cardiac arrhythmias, helping you take control of your heart health with confidence.

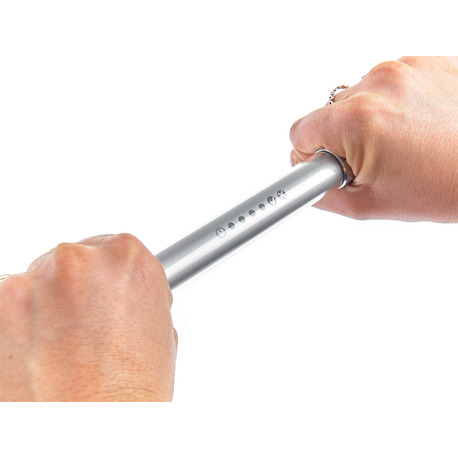

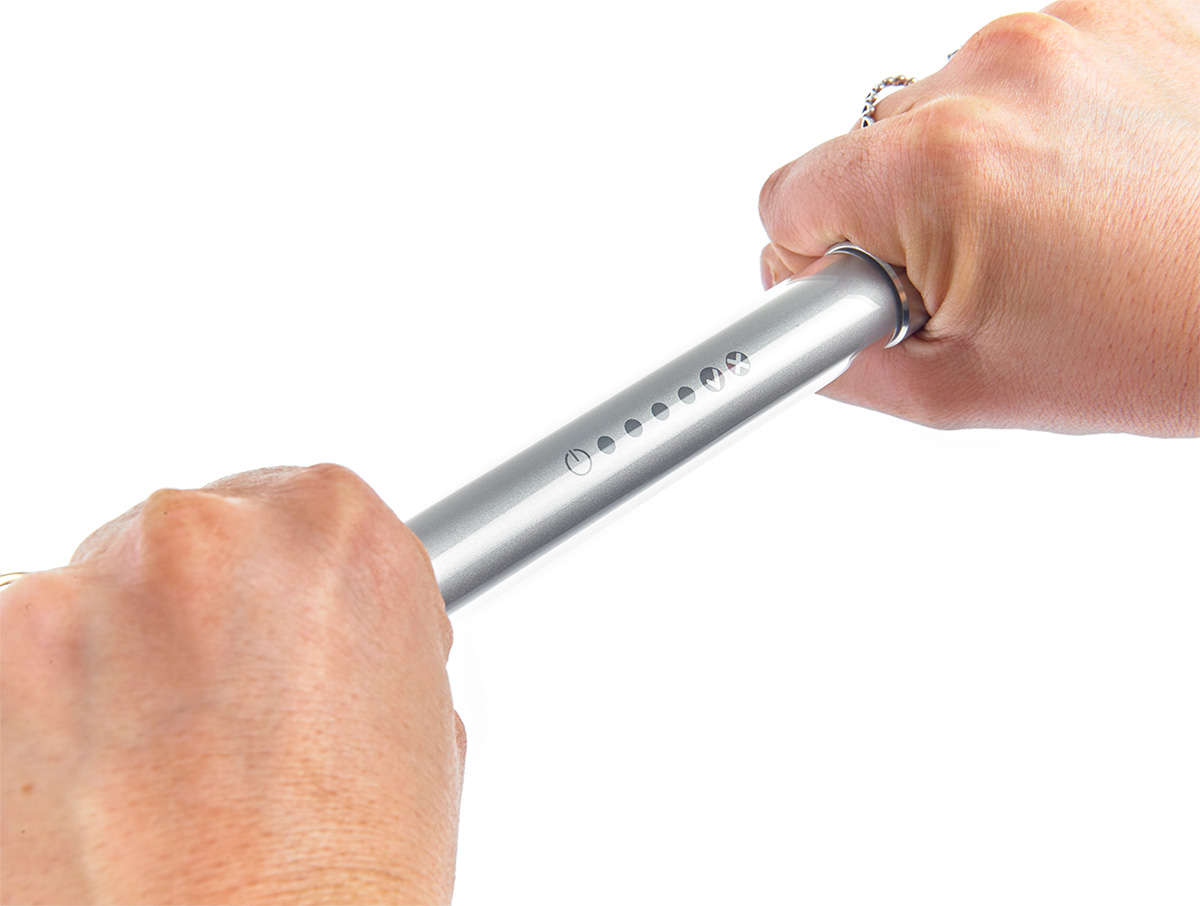

MyDiagnostick is a screening tool that detects patients with Atrial Fibrillation (AF). It is very quick and easy to use. The patient simply holds the metal handles at either end of the device which automatically switches it on, starting the recording of an ECG whilst analysing the heart rhythm. After only one minute the device displays either a green tick for a normal ECG, or a red cross if AF is detected.

MyDiagnostick can record and store over 100 ECGs, and the ECG strips that are stored can be retrieved through a USB connection by the physician, enabling clinical confirmation and documentation of AF. ECG traces can be downloaded to the MyDiagnostick Management Studio software and PDF ECG reports created if required.

MyDiagnostick is perfect for use by general practitioners and pharmacists to detect AF in patients. The portability of MyDiagnostick means measurements can be performed outside of the doctor’s office for a longer period of time. It can be used at home, at the office or anywhere at any time during the day, meaning it can be used to screen for silent AF. It is supplied with a 2 year warranty.

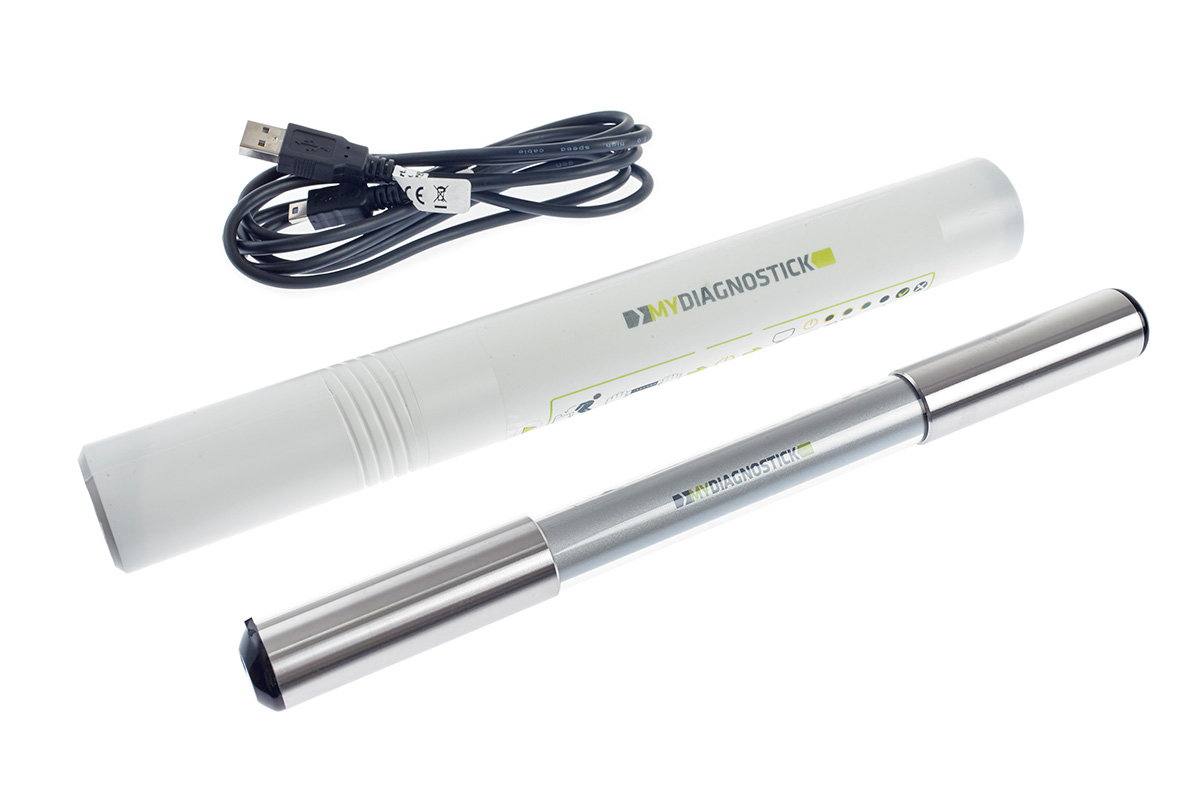

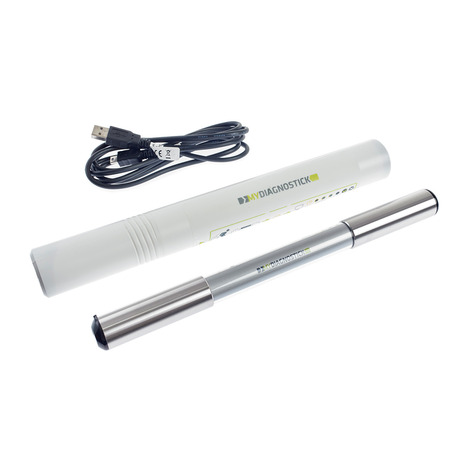

What's in the box?

  • MyDiagnostick ECG Recorder with AF Detection
  • Protective case
  • USB Cable

Key Features:

  • Extended Warranty: With a solid 2-year warranty, the MyDiagnostick AF Screening Device provides assurance of quality and reliability, ensuring long-term support for your cardiovascular health monitoring needs.
  • Efficient Battery Operation: Equipped with two NiMH 1.2V 2000 mAh rechargeable batteries, this device offers reliable performance with an extended battery life. Enjoy continuous AF screenings without the hassle of frequent battery replacements, providing peace of mind and uninterrupted monitoring.
  • Compact and Lightweight Design: Designed for convenience and portability, the MyDiagnostick features dimensions of 260 mm in length and 22 mm in diameter, with a weight of just 180 g. Its sleek and lightweight design allows for easy handling and transport, making it suitable for use at home or on the go.
  • User-Friendly Operation: With intuitive controls and a simple interface, the MyDiagnostick ensures effortless operation for users of all ages. Conduct AF screenings with ease and convenience, empowering you to monitor your heart health regularly and proactively.
  • Accurate AF Detection: Utilising advanced technology and signal processing algorithms, the MyDiagnostick delivers accurate and reliable AF screening results. Detect irregular heart rhythms early, enabling timely intervention and reducing the risk of stroke and other complications associated with AF.

With the MyDiagnostick AF Screening Device, you can monitor heart health with accuracy and confidence. Stay proactive in managing patient's cardiovascular well-being with the MyDiagnostick AF Screening Device. With its reliability, precision, and user-friendly design, you can detect AF early.

Mechanical

Length 260 mm

Diameter 22 mm

Weight max. 180 g

Electrical

Batteries 2x NiMH 1.2V 2000 mAh rechargeable (not replaceable)

Charge time (from depleted state) max. 12 hours

Battery longevity min. 500 recordings of 60-70 s at full charge

Computer connection USB 2.0

Full Speed Power consumption max. 300 mA (charging, via USB connector)

Safety type BF (EN 60601)

Environment

Temperature (operating) +1 oC to +40 oC

Temperature (non-operating) -10 oC to +50 oC

Relative humidity (operating) 10% to 90%

Barometric pressure normal atmospheric pressure ranges

Ingress protection IP24 (EN 60529)

Functional

ECG storage capacity 140 recordings of 60-70 s

AF detection method R–R interval dispersion during 60 seconds

AF detection sensitivity min. 90% (as a result of adjusted ROC in detection)

AF detection specificity min. 95%

Miscellaneous

Classification Class 2A (93/42/EEC)

RoHS Complies with RoHS 3 according to directive EU 2015/863

EMC Complies with the conditions according to - directive IEC 60601-2-1
