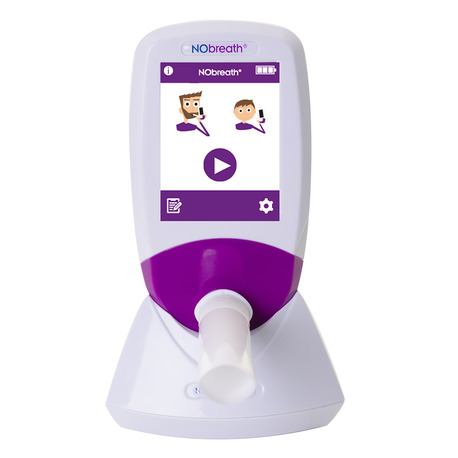

Bedfont® NObreath® FeNO Monitor
Product Code: N101242
-
Simple to use with touchscreen control - Quick and simple test procedure. Minimal product training required
-
Clinically proven technology - Over 10 years of clinical use
- Easy to interpret - Single test result allows for quick interpretation and treatment decisions
- Test quality feedback - Confirms that the test has been performed correctly
- On-screen incentives - Aids the user to provide a breath sample at a consistent flow rate
- Cost-effective consumables - Single-patient mouthpieces can be used multiple times in a session
Made in the UK, The Bedfont® NObreath® is an accurate and simple to use handheld monitor that measures Fractional exhaled Nitric Oxide (FeNO) in the breath. It is a cost-effective and non-invasive FeNO monitor for the detection of airway inflammation, aiding healthcare professionals in making better clinical decisions.
NObreath® is designed to detect eosinophilic airway inflammation which allows healthcare professionals to make more informed clinical decisions for patients displaying symptoms. Measuring FeNO helps to ensure the appropriate treatment and ongoing care of the patient. The test is simple to perform, non-invasive and requires very little respiratory effort, making it suitable for use on all patients including children.

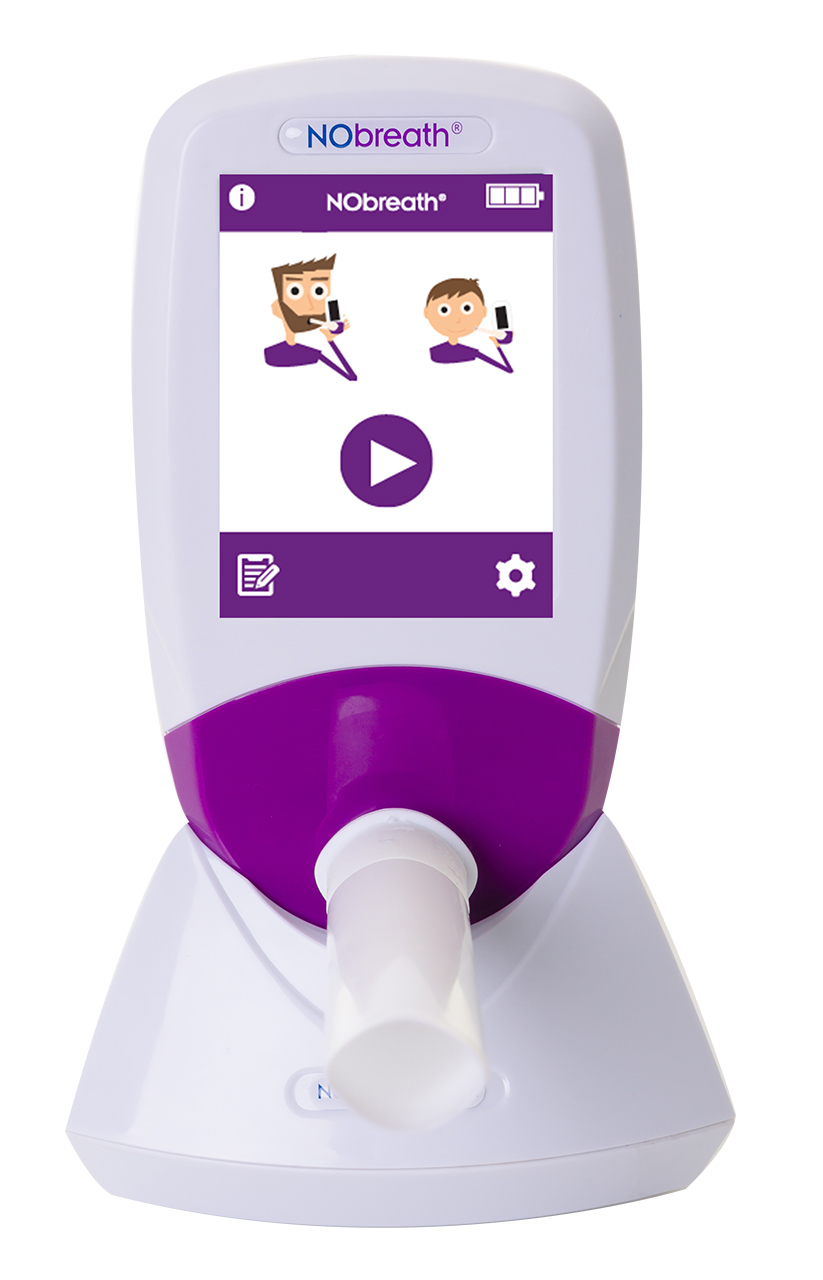

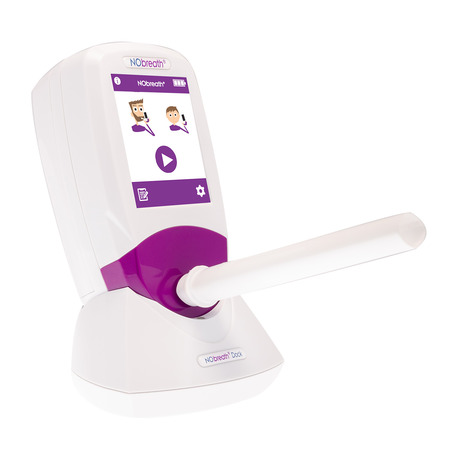

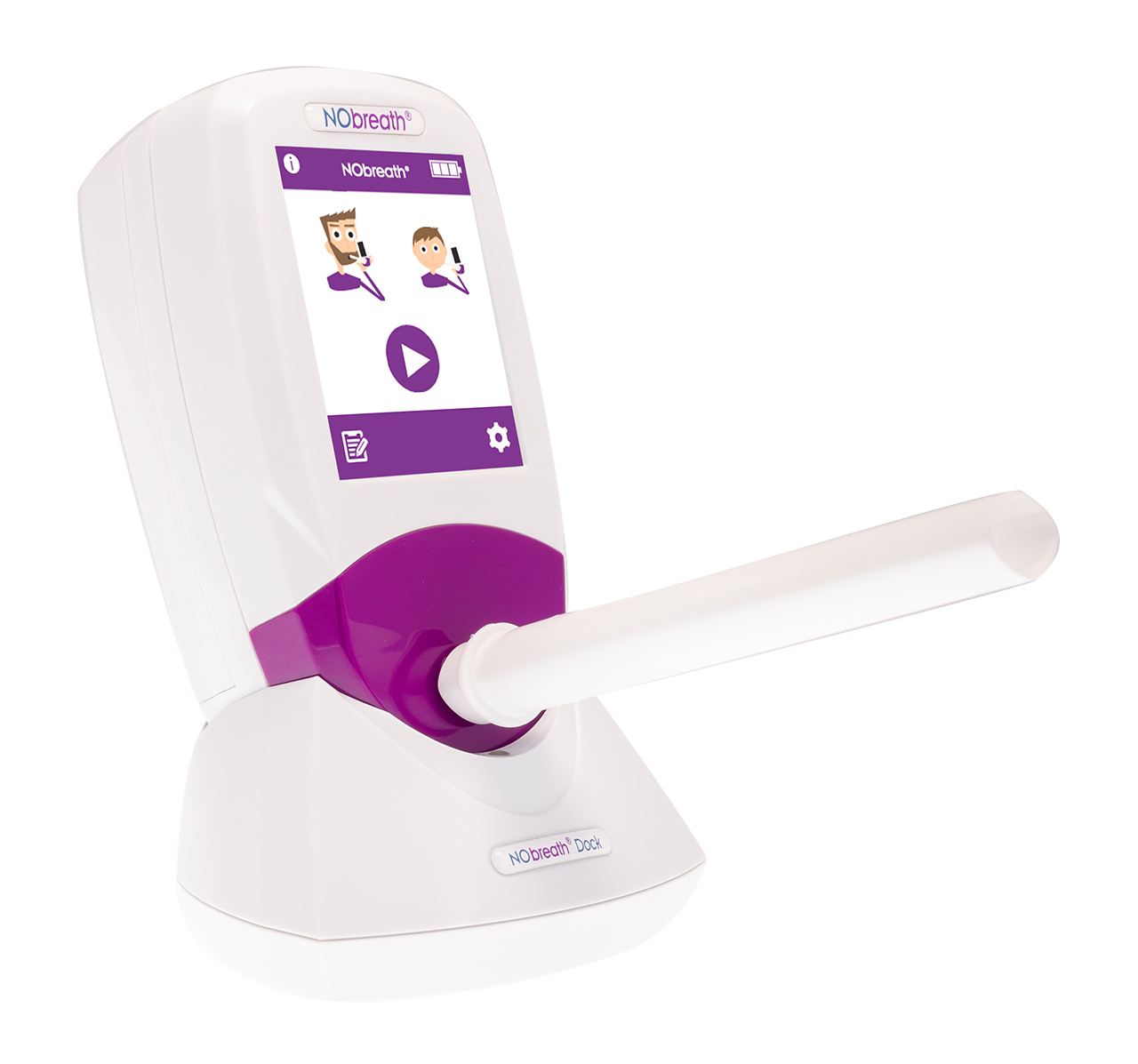

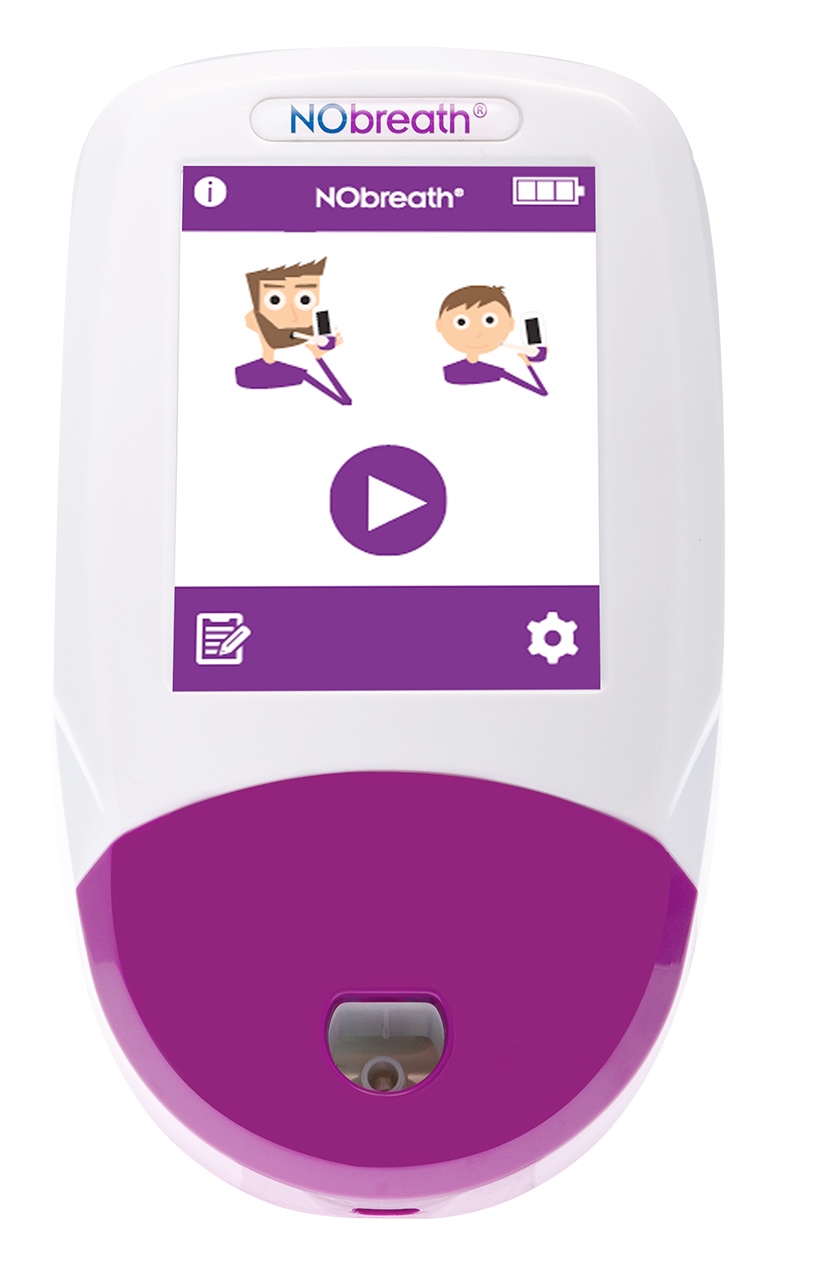

The device is ergonomically designed, lightweight and portable. It is powered by an internal battery and comes with a USB docking station for charging and connection to a PC.
NObreath® uses specially designed single-patient mouthpieces (sold separately), which can be used multiple times in any one session without affecting repeatability. Mouthpieces contain a bacterial/viral filter that reduces the risk of cross-infection between patients.

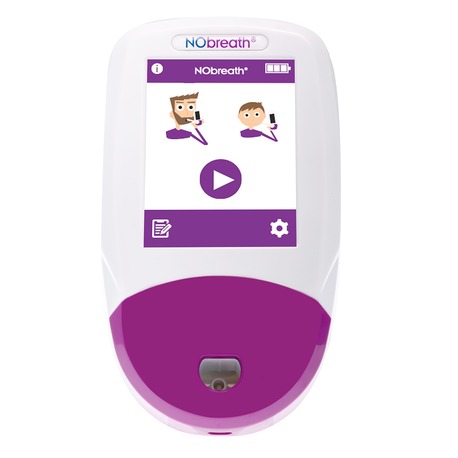

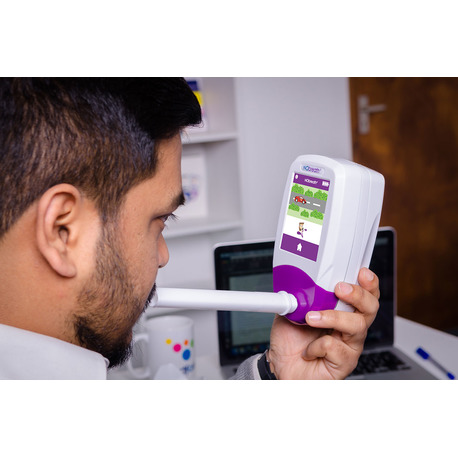

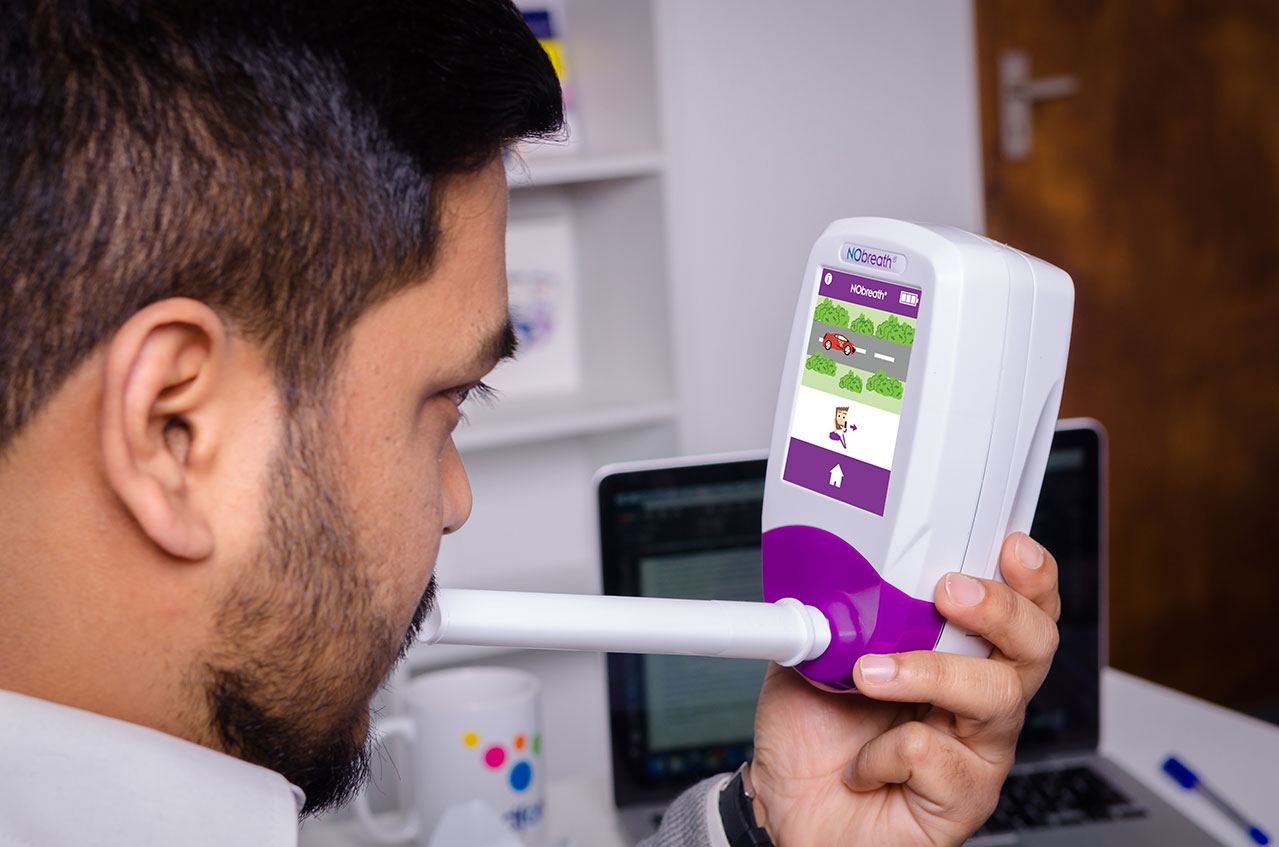

Operating the NObreath® is quick and simple. The intuitive icon-based interface is easy to navigate. Selecting the adult or child icon from the home screen immediately initiates the test for that profile. The on-screen graphical instructions guide the user when to inhale and when to exhale into the mouthpiece. During a test, the incentive display guides the user in maintaining a consistent flow rate which is essential for a good quality test. NObreath® will show test quality feedback once a test has been completed which is confirmed with either a green tick or a red cross therefore ensuring user compliance. The FeNO result is displayed immediately after the test as a single value in parts per billion (ppb). The result can be cross-referenced with the interpretation chart that is provided. The user has the option to store the result in the internal memory of the device.
NObreath® comes with a 5 year warranty and has no predefined test limit on the sensor before this needs replacing.
What’s Included?
- NObreath V2 FeNO Monitor
- NObreath Docking Station
- USB cable and power adaptor
- User manual
- Quick Start guide
- Interpretation Chart
- Infection Control Maintenance Guidelines
- Patient Preparation Guide
- PLEASE NOTE: Mouthpieces are sold separately. See FeNO Accessories section
Warranty
- 5 year manufacturer’s warranty
Concentration Range: 0-500ppb nitric oxide
Accuracy: ± 5ppb of measured value 50ppb
± 10% of measured value >50ppb
Repeatability: ± 5ppb of measured value 50ppb
± 10% of measured value >50ppb
Sensor Sensitivity: 1ppb
Breath test time: Adult 12 seconds. Child 10 seconds
Warm up time: ~60 seconds
Ambient air test: 30 seconds
Operating temperature range: 10-30ºC (ambient)
Operating relative humidity (environmental): 10-80% Rh (non-condensing)
Sensor operating life: 5 years; subject to correct use, maintenance and service
Detection principle: Electrochemical sensor
Maximum ambient operating level: 350 ppb NO
Power:
Monitor:
1 x main rechargeable Li-ion battery- Approx. 100 uses on fully charged battery
2 x Li-ion coin cell battery- Approx. 5 years Input: 5V, 0.5A
Dock:
Input: 5V, 0.5A Output: 5V, 0.5A
Plug:
Input: 100-240V ~ 50/60Hz., 0.2A
Output: 5.0V, 1.0A
Battery Operation Life: Up to 100 tests Approx.
Display: Colour touch screen
Dimensions: Approx. 90 x 159 x 59 mm
Weight: Approx. 400g
Construction:
Case & Dock. Polycarbonate/ABS blend with SteriTouch® anti-microbial additive
Mouthpiece. Polypropylene
