CareFusion MicroLoop Mk8 Handheld Spirometer with SPCS Software

Product Code: B100150

Was
£1,494.00
Now from
£1,120.50 exc VAT
£1,344.60 inc VAT
support

Currently unavailable. Please contact us for information.

  • High definition colour touch-screen
  • Desktop docking station for battery charging and PC and printer connection
  • Fast on-screen text entry enabling comments and report writing
  • Fully customisable printout formats
  • 2 Year Warranty

Our diagnostic solutions are designed to save you time and improve patient safety. This product is available with the following options:

Mediserve Support

This product is available with our unique MediServe support package, which includes unlimited technical support and a full aftercare service.

Find out more about Mediserve support

Installation & Training

Our dedicated team can install and train you on this product at a time that is convenient for you.

Find out more about install & training

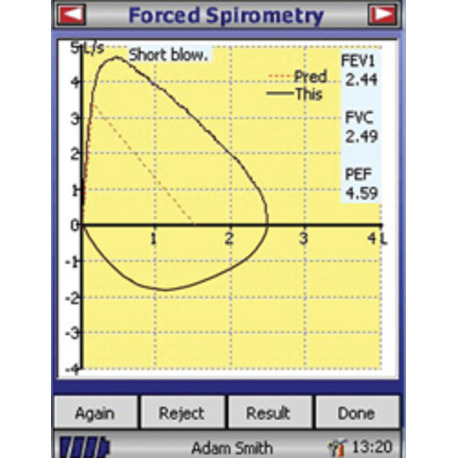

The CareFusion MicroLoop MK8 Handheld Spirometer features a highly intuitive, high definition colour touchscreen that allows fast and accurate spirometry tests to be performed. Tests can be stored in the built in memory for later upload to the computer when necessary.

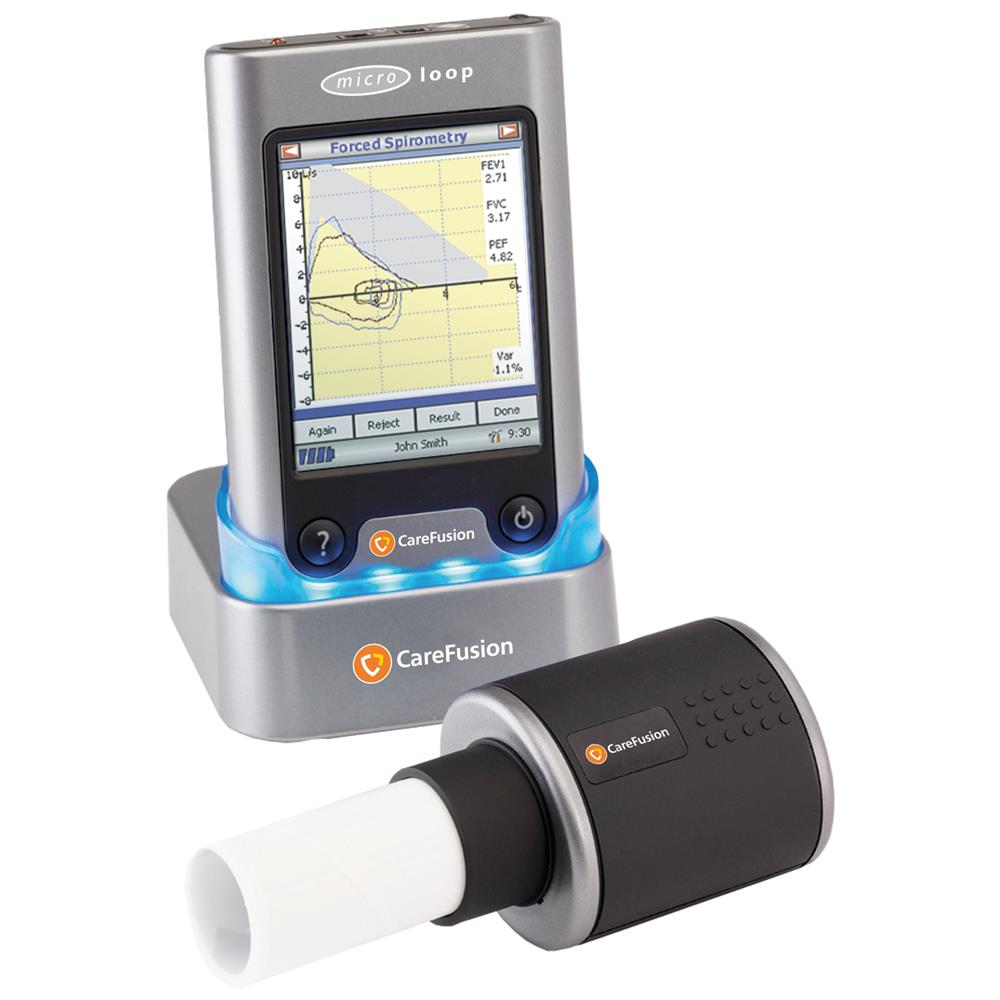

The MicroLoop spirometer comes with a desktop docking station which makes charging, connection to a PC and the uploading of data and the printing of results to an external printer simple and easy. It is fully compatible with Spida 5 and SpidaXpert and meets all International Standards for accuracy (ERS-ATS 200512 compliant.) Features a 2 year warranty.

Main Features

  • High defintion colour touch-screen
  • Desktop docking station for battery charging and PC and printer connection
  • Fast on-screen textual entry enabling comments and report writing
  • Fully customisable printout format
  • 2 Year Warranty

Please note: integration with EMIS LV, PCS and Web requires an additional 'Link Licence' which must be purchased from the manufacturer after delivery. TPP SystmOne integration is currently free of charge.

TESTS PERFORMED: FVC, SVC, optional Pulse Oximetry

MEASUREMENTS: Forced (FVC),FEV1, FVC, PEF, FEV1/FVC, FEV6, VC, FEV.75,FEV3,FEV.75/VC,FEV.75/FVC, FEV1/VC, (FER), FEV3/VC,FEV3/FVC, FEV.75/FEV6, FEV1/FEV6, FEF25 (MEF75), FEF50,(MEF50), FEF75 (MEF25), FEF25-75 (MMEF),FEF50/VC,FEF50/FVC, MMEF/FVC (FEF25- 75/FVC), FIV1, FIVC, PIF,FIV1/FIVC (FIR), FIF25 (MIF75), FIF50 (MIF50), FIF75(MIF25), R50 (FEF50/FIF50), MET25-75, FET, MVV

Relaxed (SVC): VT (TV),Ti, Te, Ti/Ttot, EVC, IVC, IC, VT/Ti (TV/Ti), IRV, ERV, FR

Volume Range: 0.1 to 8L (Gold Standard Turbine 0.1 to 9.99L)

Flow Range: 0.2 to 15 L/s

Accuracy: +/- 3% to ATS Recommendations

SPIROMETRY PC SOFTWARE

Requirements:  Microsoft Windows 2000, XP, 7

SPO2 Range/Accuracy: 0% to 100% ± 2 digits

Heart Range/Accuracy: 18-300bpm ± 1 digit

Test recording time: 20 sec - 60 min

Data Recording: SpO2: 3x %SpO2 per sec bpm: 3x HR per sec

General Storage: 2000+ patient tests including Flow/Volume loops and Volume/Timegraphs.

Power Supply: Input: 100-240V AC 50-60Hz Output: 12V 2,5A

Battery Pack: Rechargeable NiHm 8,4V 1100mAh

Dimensions:  25.5cm x 12cm x 3.5cm : Transducer 50mm x 60mm x 90mm

Transport and storage conditions

Operation Temperature:  0°C to 40°C (+32°F to +104°F)

Weight, excluding transducer: 660g

Operating Humidity: 30-90% non-condensing

Storage and Transport Temperature: -20°C to +70°C
