CO Check Pro Carbon Monoxide Breath Monitor

Product Code: N101245

Out of Stock
Now from
£248.40 exc VAT
£298.08 inc VAT

  • Designed for healthcare professionals to carry out simple breath tests whilst providing comprehensive results.
  • Coloured light indicators to signify smoking level
  • Results instantly displayed
  • Single press button to toggle between ppm and %COHb
  • Breath hold countdown timer to guide patients
  • Measurement of environmental CO levels

Not available for members of the public to purchase for private use - please contact us for more information


Options


Includes FREE Delivery
£248.40 exc VAT
£298.08 inc VAT

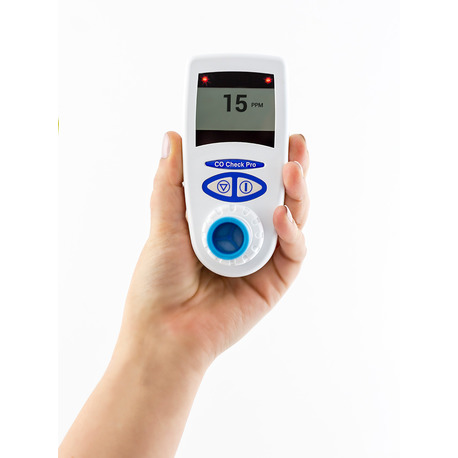

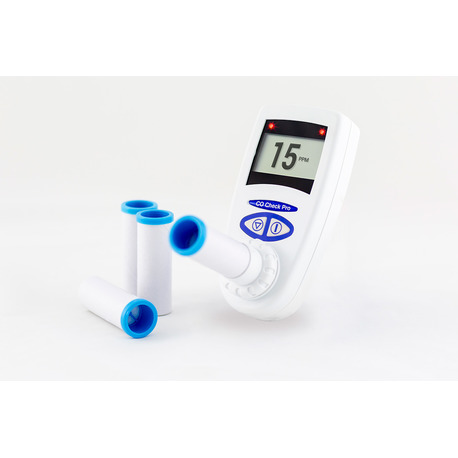

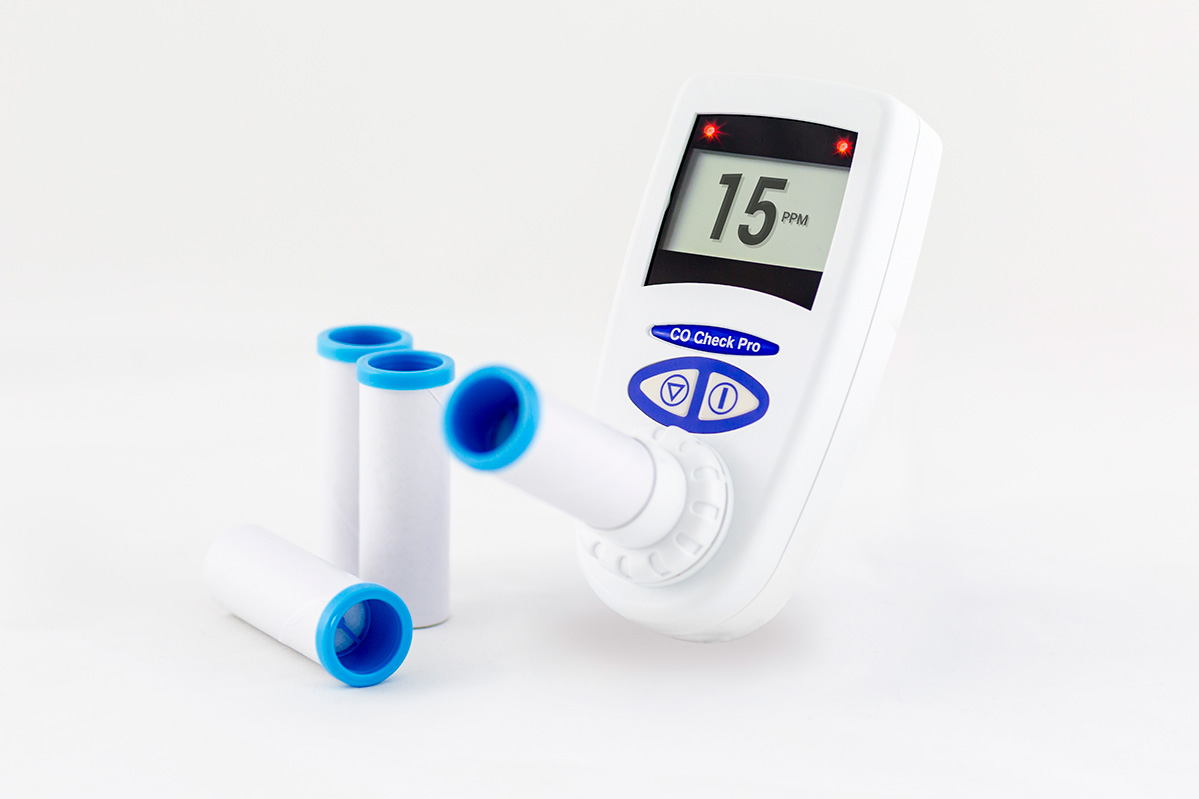

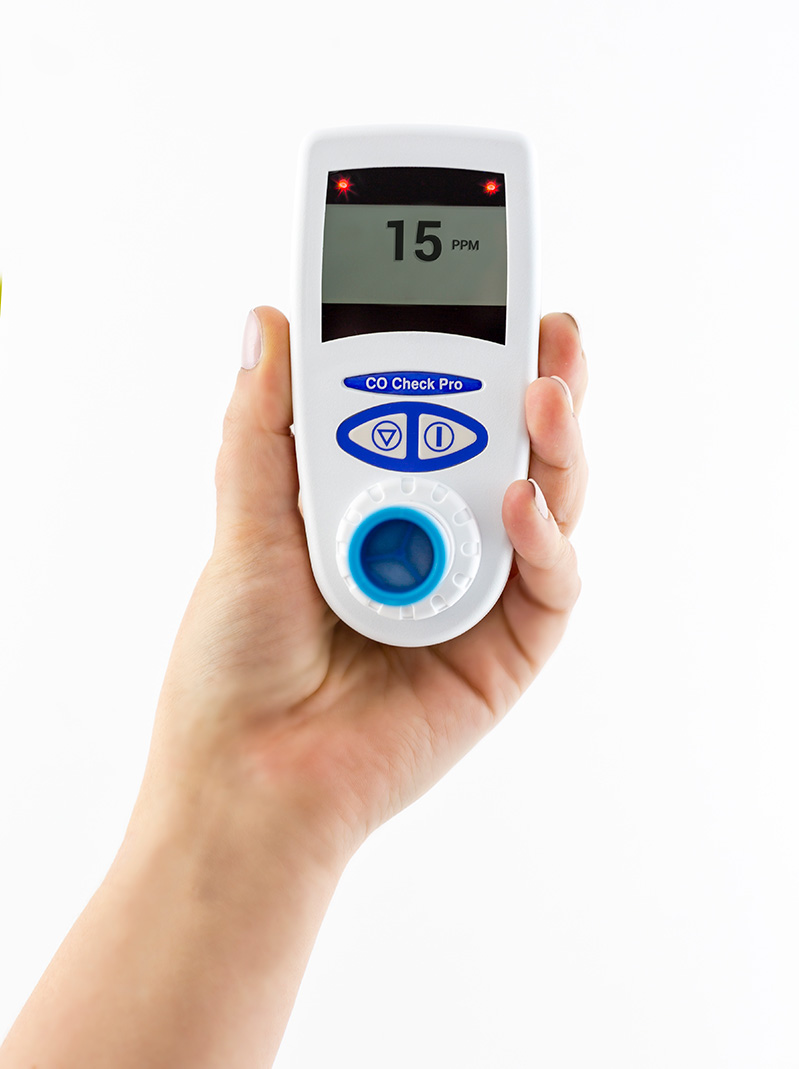

The CO Check Pro carbon monoxide breath monitor has been designed for the healthcare professional to carry out simple breath tests whilst providing comprehensive results.

From a single breath, the results of the CO Check Pro are displayed instantly in parts per million (PPM) and % carboxyhaemoglobin (%COHb). Clear visual guidance is also provided with coloured red, yellow and green indicators dependent on the concentration of exhaled carbon monoxide, indicating if the person is a non-smoker, light smoker, or heavy smoker.

The CO Check Pro breath monitor is also capable of detecting environmental CO levels. When the Environmental Capture is enabled, background CO levels are taken into account when carrying out a breath test. This ensures that any possible environmental exposure can be clearly identified. Environmental levels are displayed in PPM.

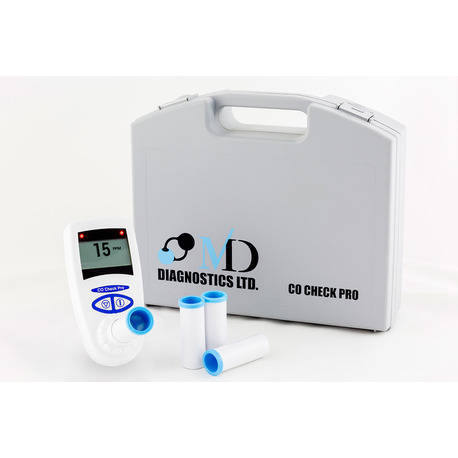

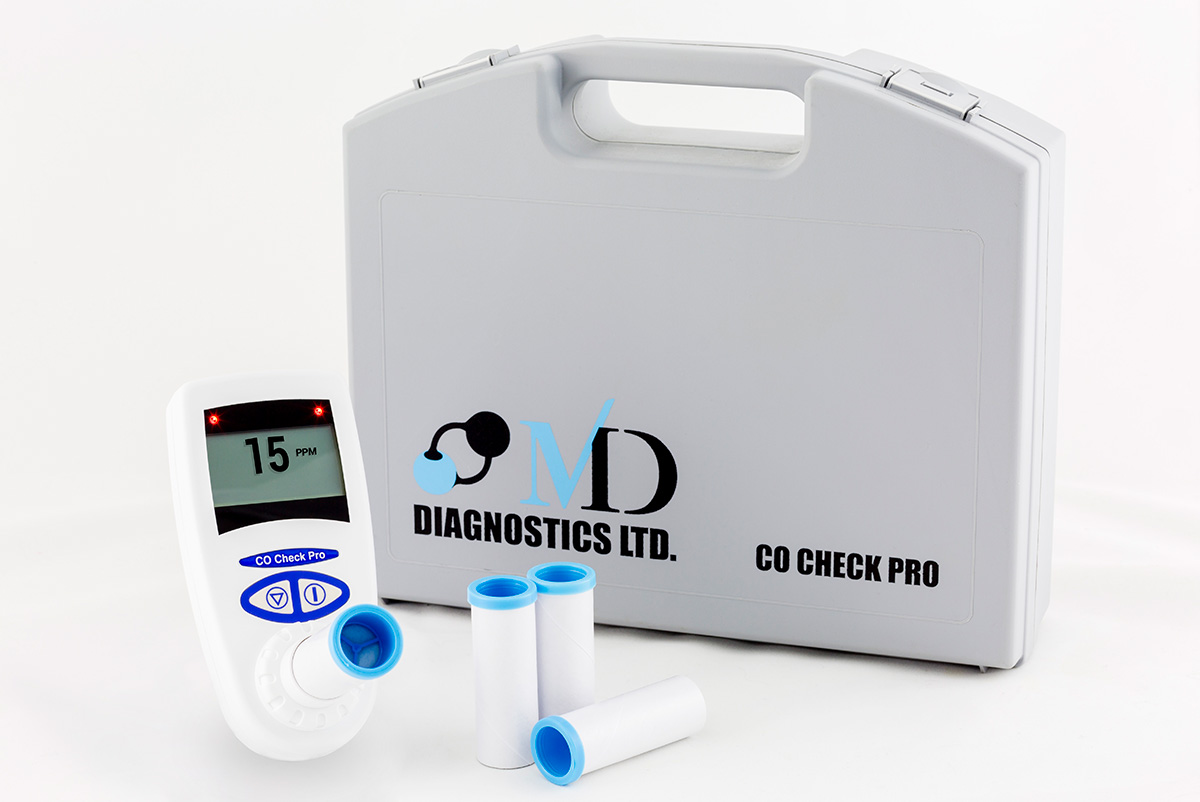

What's included?

  • CO Check Pro Carbon Monoxide Breath Monitor
  • Carry case
  • 6 SafeBreath mouthpieces
  • 9v PP3 battery
  • Calibration stem connector
  • Operating manual

FAQs

Is the monitor CE Marked?

Yes

Is it IEC 60601 Electrical Safety Standard Compliant?

Yes

Is the useful life of the device 2 year or 5 years?

The device has a 5 year warranty except for the electrochemical fuel cell which has an expected life of two years and is therefore excluded from the warranty.  The electrochemical fuel cell works in a similar way to a battery and therefore the more you use it the shorter it’s life. The chemical is used up as it combines with the CO in the exhaled breath, which produces a current that is proportional to the CO concentration.  In normal use the cell will last at least 2 years but if it is used regularly with high levels of CO, or exposed to abnormally high levels of CO, it may need to be replaced sooner.

Technical Specification

Gas Detected – Carbon Monoxide

Concentration Range – 0-99 PPM

Detection Sensor Used – Electrochemical fuel cell

Sensitivity – 0.1 PPM (0-10 PPM range); 1 PPM (10-99PPM range)

Accuracy (repeatability) – 2ppm or +/-5% whichever is greater

Operating Temperature – 5-35o Celsius

Operating Pressure – Atmospheric 10%

Operating Humidity – 30% to 90% RH

Operating Altitude – Sea level to 6000 ft

Storage Temperature -20 to + 70O C

Storage Humidity – 10% to 90% RH

Hydrogen cross-sensitivity – <12% at 20˚ C

Sensor Life – 2 – 5 years, 2 years’ warranty

Sensor Drift  – <2% per month

Display – 128 X 64-pixel Graphic LCD

Power Supply – Single 9V PP3 battery

Weight (approximate) – 160g including battery

Dimensions  – 135mm x 65mm x 30mm

*Indicator levels – Green 0 – 6 PPM, Yellow 7 – 10 PPM, Red 11 – 20 PPM, Flashing red 20+ PPM

CO Check Pro – Catalogue Number CO20
